IP/TS Multiplexer

DMB-9160C ASI+IP to IP+ASI Multiplexer is a professional TS processor and new generation IP Multiplexer used in digital TV broadcasting and IPTV head-end system. It receives 4*IP(MPTS/SPTS) + 4*ASI IN channels and multiplex & de-multiplex the input programs into 4*IP (STSP/MPTS) + 4*ASI(MPTS/SPTS) OUT, meanwhile, the scrambling feature for optional....
-
+
$1,090.00

TS Multiplexer

2 In Stock

DMB-9160C ASI+IP to IP+ASI Multiplexer is a professional TS processor and new generation IP Multiplexer used in digital TV broadcasting and IPTV head-end system. It receives 4*IP(MPTS/SPTS) + 4*ASI IN channels and multiplex & de-multiplex the input programs into 4*IP (STSP/MPTS) + 4*ASI(MPTS/SPTS) OUT, meanwhile, the scrambling feature for optional.
For easy management, it can be controlled and upgraded via web-based management in addition to front panel keyboard. Its high integration and cost-effective design have made it widely used in the IPTV Broadcasting system, edge side of Digital TV backbone network, Head-end system of Digital TV branch network etc.

FEATURES

  • Fully complying with ISO13818 and EN300 468 standard
  • 4*IP(MPTS/STPS)+4*ASI(MPTS/SPTS) input
  • IP (SPTS/MPTS) input over RTP/UDP
  • 4*IP(STSP/MPTS )+4*ASI(MPTS/SPTS) OUT, 4 independent ASI output
  • MAX. input bitrate of IP is 800Mbps.
  • Support UDP, RTP, ARP, ICMP, IGMP protocol etc.
  • Auto-generation of Network information.
  • Support accurate PCR adjusting
  • Support PID pass-through, re-mapping, filtering.
  • Support PSI/SI rebuilding and editing and auto-generation.
  • Huge buffer memory for saving the overflowing code stream
  • LCD/keyboard, Web-based and SNMP management, remote upgrading.
  • Power off memory, saving the settings for auto-loading after reboot.
  • Import & export the settings, easy to be configurable.



APPLICATIONS

Digital TV Broadcasting System
Digital TV Programs Transmission
Hotel TV System
Head-end system of Digital TV branch network
CATV Broadcasting system
Edge side of Digital TV backbone network



SPECIFICATIONS

Transport Stream Input
1*IP (RJ45,GigE)
4*IP(MPTS/SPTS), Unitcast/Multicast, RTP/UDP, ARP, ICMP, IGMP Protocol.
4*ASI input, BNC connector
Re-multiplex
PID re-mapping (auto or manually available)
PCR accurate adjusting
Automatic generating PSI/SI table
PID pass-through
Transport Stream Output
4*IP(MPTS/SPTS)
4*ASI(MPTS/SPTS) OUT, 4 independent ASI output


GENERAL OPTIONS
Physical And Power
Voltage: 110VAC±10%,50/60Hz; 220VAC±10%,50/60Hz
Consumption: less than 25W
Operating temperature: 0~45℃(operation), -20~80℃(storage)
Dimensions: 482mm(W)*410mm(D)*44mm(H)
Weight: 4.0kg/pc

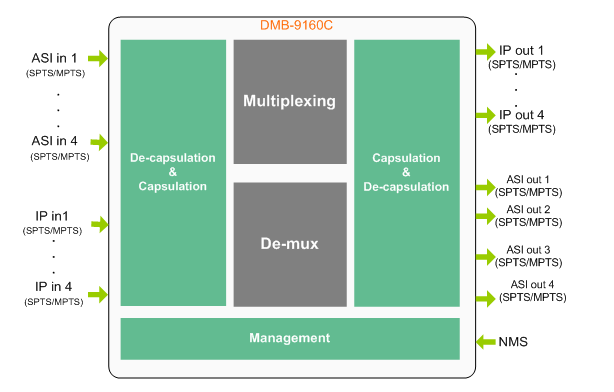

DIAGRAM
