DMB-2408 Multi-channel Remodulator designed with high compact for capture signals from satellite DVB-S/S2 tuner and convert to digital RF(DVB-T or DVB-C for option), moreover built-in features of multiplexing and scrambling. It’s the professional and high cost-performance equipment tailor for hotel distribution TV. Furthermore, the four CAMs accompanied can descramble the...
-
+
$1,360.00

DTV Modulator Series

2 In Stock

DMB-2408 Multi-channel Remodulator designed with high compact for capture signals from satellite DVB-S/S2 tuner and convert to digital RF(DVB-T or DVB-C for option), moreover built-in features of multiplexing and scrambling. It’s the professional and high cost-performance equipment tailor for hotel distribution TV. Furthermore, the four CAMs accompanied can descramble the programs from 8 Tuner (4*Tuners Fixed+4 Tuners/pluggable 2 modules) and IP input.
Considering for future-proof features DMB-2408 has 8 tuner inputs and equipped with IP input(128SPTS/MPTS) and IP output(4MPTS) which could be expanded the channels to IPTV system or capture signals from IP source.

FEATURES

  • Up to combined with 4*DVB-C/S/S2/T/T2 Tuners(Fixed) and 4*DVB-C/T/T2/S/S2/ATSC Tuners with CAM (pluggable 2 Modules)
  • 128*IP(MPTS/SPTS) input over UDP and RTP.
  • For DVB-T output: 4 groups multiplexing +4 groups DVB-T modulating
  • For DVB-C output: 4 groups multiplexing + 4 groups scrambling + 4 groups DVB-C modulating
  • One CAM can decrypt multiple programs from any Tuners and IP input
  • 4 IP (MPTS) output over UDP and RTP protocol
  • Demodulation Module (4*RF in/loop out + 4*CAM + 4*Smartcard)
  • Easy to adjust the PCR in precisely.
  • Offering PID Remapping and capable of rebuild & edit the PSI/SI.
  • Easy to configure via Web-based management.



 APPLICATIONS

  • Hotel/Hospital/Compus/CommunityDistribution TV System
  • Digital SignageProject
  • Digital TV Broadcasting System
  • CATV Broadcasting system
  • IPTV & OTT system



SPECIFICATIONS

TRANSPORT STREAM INPUTS
Tuner input:
4*DVB-C/T/T2/S/S2 Tuners and 4*Tuners with CAM(DVB-C/T/T2/S/S2/ATSC)
Tuner standard:
DVB-C Standard J.83A(DVB-C), J.83B, J.83C
Input Frequency: 30 MHz~1000 MHz
Constellation:16/32/64/128/256 QAM

DVB-T/T2 Input Frequency 30MHz ~999.999 MHz
Bandwidth 6/7/8 M bandwidth

DVB-S Input Frequency 950-2150MHz
Symbol rate 2-45Msps
Signal Strength :-65~-25dBm
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 QPSK

DVB-S2(Version 1) Input Frequency: 950-2150MHz
Symbol rate: QPSK 1~45Mbauds; 8PSK 2~30Mbauds
Code rate:1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Constellation: QPSK, 8PSK

DVB-S2(Version 2): Input Frequency 950-2150MHz
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Constellation: QPSK, 8PSK, 16APSK, 32APSK
Symbol rate: QPSK 1~45 Msps; 8PSK 2~30 Msps;
16APSK 1~45 Msps; 32APSK 1-32 Msps

ATSC-T : Input Frequency 54MHz~858MHz
Bandwidth 6M bandwidth
IP input
128*IP(MPTS/SPTS) in, Unicast, Multicast, UDP,RTP protocol.
Connector: RJ45, 100/1000M.

Descrambling
4*CI Slots

Multiplexing
Maximum PID Remapping: 256 per input channel
PID Remapping
Accurate PCR adjusting
Generate PSI/SI table automatically.

Scrambling(Only for DVB-C output)
Maximum: simulcrypt CA 4
Standard: ETR289, ETSI 101 197, ETSI 103 197
Connection: local/remote connection

TRANSPORT STREAM OUTPUTS
DVB-T Modulation
Standard: EN300744
FFT mode:2K
Bandwidth:6M, 7M, 8M
Constellation:QPSK, 16QAM, 64QAM
Guard Interval:1/4, 1/8, 1/16, 1/32
Code Rate:1/2, 2/3, 3/4, 5/6, 7/8
MER:≥42 dB
RF frequency:50~960MHz, 1KHz step
RF out: 4*DVB-T non-adjacent carriers combined output, 40M total bandwidth limitation
RF output level:-28~ -3 dBm (79~104 dbµV), 0.1db step

DVB-C Modulation
Standard:J.83A (DVB-C), J.83B,
MER:≥43dB
RF frequency:50~960MHz, 1KHz step
RF output level:-25~ -1dbm(83~107 dbµV), 0.1db step
Symbol rate:5.000~7.000Msps adjustable
RF Out:4*DVB-C non-adjacent carriers combined output, 40M total bandwidth limitation
Constellation: J.83A 16/32/64/128/256QAM Bandwidth 8M, J.83B 64/256 QAM Bandwidth 6M
IP OUT
4*MPTS over UDP and RTP out (RJ45, 1000M/100M Unicast/Multicast)
Connector: RJ45, 100/1000M


GENERAL OPTIONS
Management
Connector: 1*RJ-45, 10/100 Base-T interface.
Front panel and web browser via Ethernet interface
Upgradable: Ethernet, USB port.
Physical and Power
Power Supply: AC 90~260V 50/60Hz
Consumption 25W
Operational temperature: 0~45°C
Storage temperature: -20~80°C
Humidity: 10%-90%
Dimension: 480mm(W)×400(D)mm×44.5mm(H)
Weight: 4.5kg

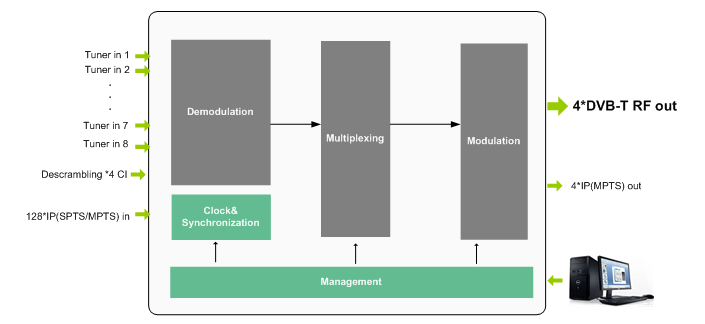

DIAGRAM

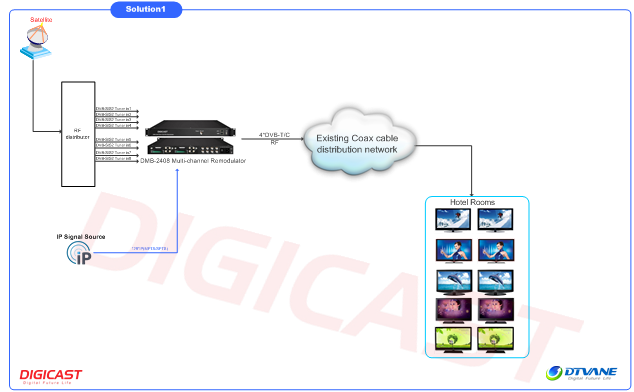

DVB-C modulation output

DVB-T modulation output
