DVB-S2 Modulator

DMB-9500 QPSK modulator adopts advanced FPGA technology to implement DVB-S channel encoding and QPSK modulation. It fully complies with DVB-S standard and has better IF output performance. DMB-9500 QPSK modulator can be used in the digital satellite television broadcasting system. In addition, it also can be used in MMDS microware...
-
+
$2,750.00

DTV Modulator Series

2 In Stock

DMB-9500 QPSK modulator adopts advanced FPGA technology to implement DVB-S channel encoding and QPSK modulation. It fully complies with DVB-S standard and has better IF output performance. DMB-9500 QPSK modulator can be used in the digital satellite television broadcasting system. In addition, it also can be used in MMDS microware point to point transmission system. DMB-9500 is the most effective DVB-S modulator in the market.

FEATURES

  • Comply to ETS 300-421 standard
  • Bit rate :1~45 Mbps
  • Frequency range: 950MHz~2150MHz, 450~950 MHz(optional)
  • Input interface comply to DVB ASI and SPI standardnt.

SPECIFICATIONS

TRANSPORT STREAM INPUT AND OUTPUT
MPEG TS Input
1 DVB-ASI input
Comply to EN 50083-9 ASI
MPEG: 188/204 bytes
Connector: DB-25 Female
Max. bit rate: 108Mbps

Output
Connecter F type, 75ohm
Frequency range 450~950 MHz or 950-2150MHz
FEC 1/2, 2/3, 3/4, 5/6, 7/8(Optional)
Symbol Rate 0~45M B/s
MER ≥36dB
BER ≤1*10-8
Output level -30~0dBm(1dBm stepping)

GENERAL OPTIONS
Control
Front Panel LCD display & cursor/execute keys
SNMP Optional
Power
Voltage AC 90~260V
Frequency 50~60Hz
Consumption Max. 25W
Mechanical Parameter
Operational temperature 0~50℃
Storage temperature -10~70℃
Humidity 10%-95%
Dimension 400mm(W)×430(L)mm×45mm(H)
Weight 6kg

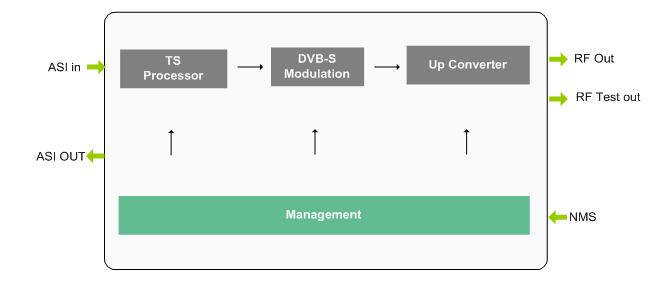

DIAGRAM
