OVERVIEW

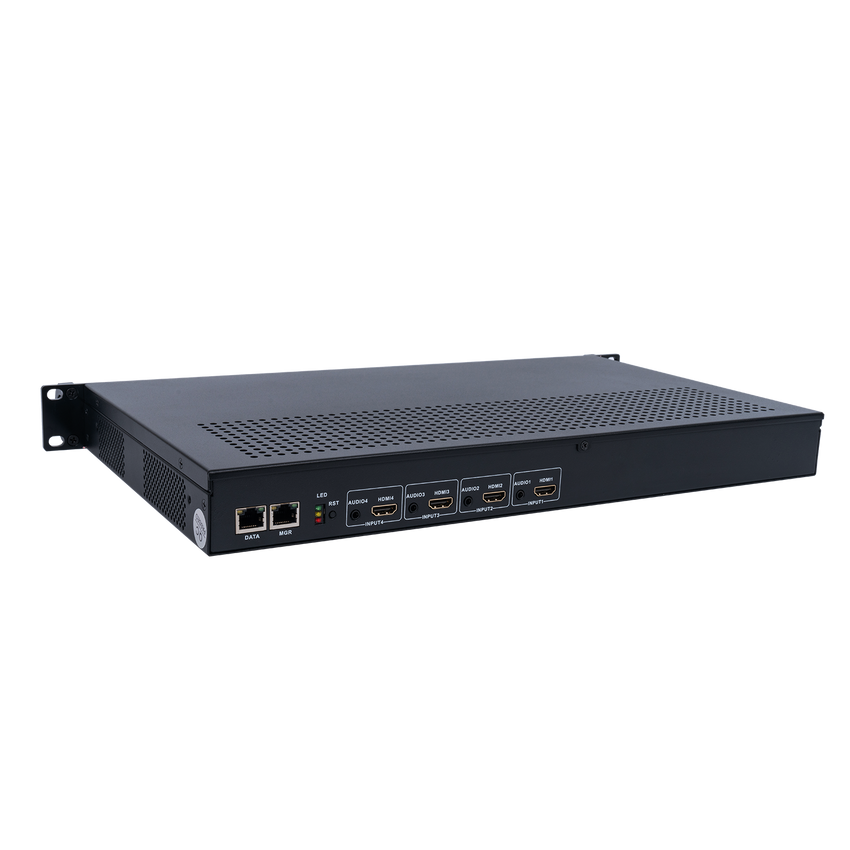

DMB-8904Pro ProStreaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/HEVC, which realizes its resolution to be up to 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth.

DMB-8904Pro accepts 4*HDMI input, and each HDMI outputs 4*TS over IP streams in H.265 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs.

DMB-8904Pro provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

FEATURES

• Video Input: 4/8-Channel HDMI+3.5mm audio
• Video Compression: HD H.264/MPEG-4 AVC, H.265/HEVC
• Support dual network port mode (data port and debugging port)
• Transmission mode: TCP, UDP, 1000M/100M (RJ45 duplex network port)
• Insertable of logo and Scroll Caption; Adjustable of audio gain
• Support up to 4*TS over IP stream out by each HDMIchannel input
• Support H.264 Main Profile/H.264 High Profile, 265 and MP3 & AAC audio compression
• Bitrate mode: CBR/VBR
• Capable of image parameter settings
• Switchable of audio output mode: Left, Right and Stereo
• Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
• Providing HLS, RTSP/HTTP/UDP or RTMP protocol
• Any iOS browsers (iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software
• Any terminal devices/decoders are able to have streams from IPTV Streaming Encoderdirectly by RTMP protocol with software players (such as VLC)
• Support HDCP protocol (for HDMI input)
• Support ONVIF Network Video Protocol
• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN732/64, LINUX
• Web-based management
• Full-duplex mode 1000M

APPLICATION

• IPTV & OTT system
• Internet TV
• Digital Signage Project
• Remote Video Conference
• Video Monitoring
• Live Streaming
• Digital TV Broadcasting System
• Digital TV Programs Transmission
• Hotel IPTV System
