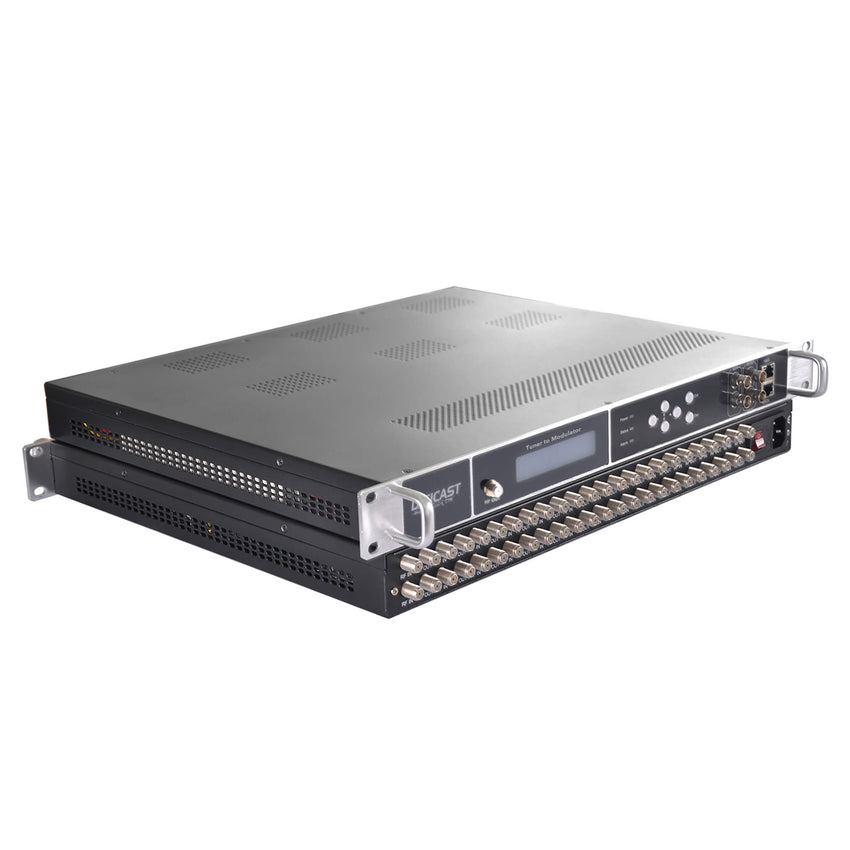

DMB-24E FTA Tuners DVB-SS2/TT2/C/ISDB-T/ATSC-T to RF Transmodulator

Overview DMB-24E Plus Series 8/12/16/20/24 Channels professional Trans-modulator, 4 Tuners ports per module, Up to 6 Modules in Back panel, demodulate to 4 separate multiplexing and Up-converter modulating adjacent carrier out.It also supports 2*independent HDMI/SDI input and output. The Tuners support DVB-S/S2/T/T2/C/ ISDB-T /ATSC-T optional input, Output RF standard support...
-
+

DIGICAST

Transmodulator

1000 In Stock

Overview

DMB-24E Plus Series 8/12/16/20/24 Channels professional Trans-modulator, 4 Tuners ports per module, Up to 6 Modules in Back panel, demodulate to 4 separate multiplexing and Up-converter modulating adjacent carrier out.It also supports 2*independent HDMI/SDI input and output. The Tuners support DVB-S/S2/T/T2/C/ ISDB-T /ATSC-T optional input, Output RF standard support DVB-T/DVB-C/ATSC/ ISDB-T/DTMB option from UI, only need reboot the device after switch the output RF standard, IP Output 1*MPTS channels simultaneously.
This is an ideal solution for environments where you have a large number of air Channel, and widely used in IPTV System, Hotel, entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of Source signals convert to Cable TV broadcast System, largely cost down the source gathering of Digital TV Broadcasting system and IPTV/OTT system which based on IP construction. Being the ideal multi-channel professional receiver used for FTA (free to air) IP signal source capture from digital tuner.

Specification

FTA TUNERS INPUT



DVB-T/T2 Tuner
Frequency range: 30MHz-1000Mhz
Bandwidth: 6Mhz, 7Mhz, 8Mhz
Level: -87 ~ -20dBm
Constellation: QPSK, 16QAM, 64QAM, 256QAM (Only DVB-T2)
FEC Demodulation: DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Interval: DVB-T: 1/4, 1/8, 1/16, 1/32
DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128


ISDB-T/Tb Tuner
Input frequency range: 30 ~ 900MHz
Bandwidth: 6MHz
Constellation: DQPSK, QPSK, 16QAM, 64QAM
Interleave: 0, 4, 8, 16
Guard Interval: 1/32, 1/16, 1/8, 1/4
Transmission mode: 2K, 4K, 8K (FFT)
FEC (Code Rate): 1/2, 2/3, 3/4, 5/6, 7/8


DVB-C Tuner
Input frequency range: 110 ~ 862MHz
DVB-C (J83.A, J83.C, NO Annex B)
Carrier: Annex A、Annex C
Constellation (QAM): 16, 32, 64, 128, 256, 64/256
Bandwidth (Mhz): 8, 6
Symbol Rate ( Mbaud): 5-7, 4.2-5.3
Tuner interface: Connecter F-female type







DVB-S/S2 Tuner
Input frequency: 950-2150Mhz
Symbol rate: 1~54MSps (DVB-S QPSK)
1~60MSps (DVB-S2 QPSK)
1~60MSps (DVB-S2 8PSK)
1~58MSps (DVB-S2 16APSK)
1~55MSps (DVB-S2 32APSK)
Signal strength: -65 ~ -25dBm
FEC demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 (DVB-S QPSK)
1/4, 1/3, 2/5, 1/2, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S2 QPSK)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK)
2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (16APSK)
3/4, 4/5, 5/6, 8/9, 9/10 (32APSK)
Roll off: 0.20; 0.25; 0.35 (Only DVB-S)
Demodulation mode: QPSK, 8PSK, 16APSK, 32APSK (Only DVB-S2)
LNB polarity selection: Vol 0, 13V, 18V Selectable
LNB band selection Tone: 0/22Khz Selectable
Input impedance: 75 Ω
FEC (Code Rate): 1/2, 2/3, 3/4, 5/6, 7/8

ATSC Tuner
Frequency range: 50–860 MHz
Key reference specification: ATSC A/53
Input level: -34 to +40 dBmV
Constellation: 8-VSB
Bandwidth: 6Mhz
Modulation RF Output option

MODULATION (4/8*RF for option)
Connector: 1 Port, F-Type, 75Ω
Output Return Loss: 14 dB
MER ≥ 40dB
RF output level: -20 ~ 0dbm, 0.1db step
Numbers of RF Channel: 4/8
Modulation Mode: DVB-C, DVB-T, ATSC, ISDB-T, DTMB option




DVB-T Modulation
Channel: DVB-T adjacent frequencies
Modulation standard: EN300744
Frequency range: 96~864MHz,1Khz one step
Modulation standard: EN300744
Bandwidth: 6M, 7M, 8M
FFT mode: 2K, 8K
Constellation:QPSK, 16QAM, 64QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
TS bit rate<31 Mbit/s


ATSC-T Modulation
Channel: 8VSB adjacent frequencies
Constellation: 8VSB
Frequency range: 96~864MHz, 1Khz one step
Constellation: 8VSB
TS bit rate<19 Mbit/s
MER≥40 dB

DVB-C Modulation
Channel: DVB-C adjacent frequencies
Frequency range: 96~864MHz, 1Khz one step
MER ≥ 40 dB
Symbol rate: 5~7 Mbaud
DVB-C standard DVB-C (J83.A, J83.B, J83.C)




ISDB-T Modulation
Channel: ISDB-T frequency
Frequency range: 96~864MHz, 1Khz one step
ISDB-T standard ARIB STD-B31
Constellation: DQPSK, QPSK, 16QAM, 64QAM
Guard Interval: 1/32, 1/16, 1/8, 1/4
Transmission mode: 2K, 4K, 8K
Code rate: 1/2, 3/4, 5/6, 7/8
Bandwidth: 6MHz
TS bit rate<21 Mbit/s
MER ≥ 40 dB

DTMB
Constellation: 4QAM, 16QAM, 32QAM, 64QAM
Code rate: 0.4, 0.6, 0.8
Guard Interval: 420, 595, 945 IONS

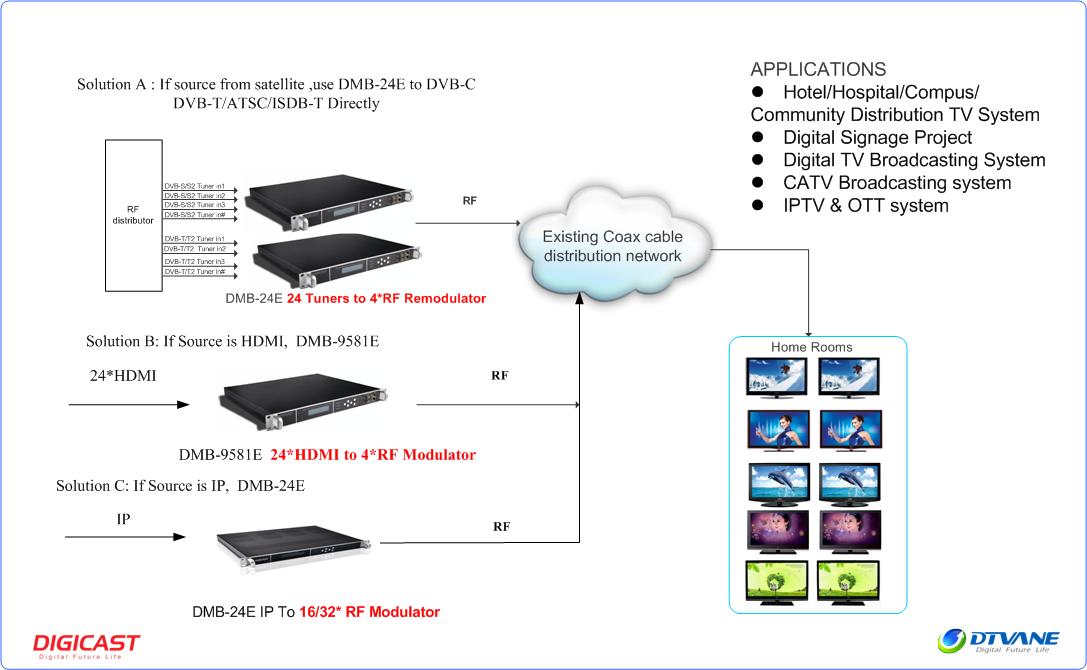

Application
