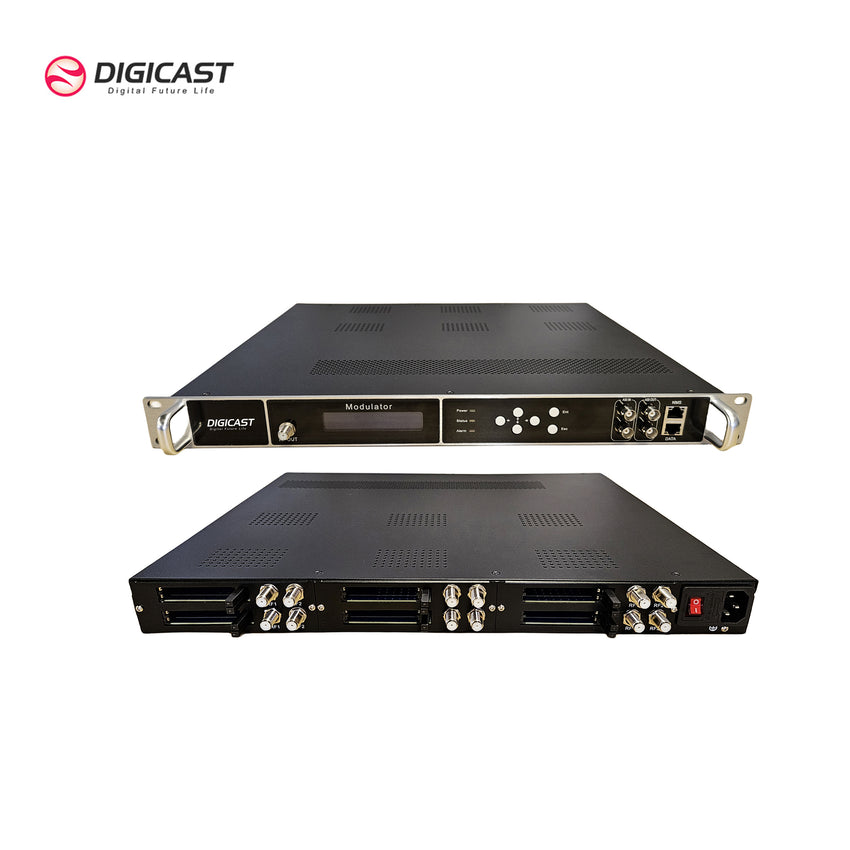

OVERVIEW DMB-24E-CI 4/8/12 channels Tuner TO RF broadcast transmodulator, support 6 modules in back panel, each module with 2*Independent Satellite DVB-S/S2/T/T2/C/ISDB-T/ATSC-T input with 2*CI slots for CI standard CAM Card for decrypt the encrypted channels, total max 12 tuners input, 4/8/12 tuners input option. Not only tuners input, this item...
OVERVIEW
DMB-24E-CI 4/8/12 channels Tuner TO RF broadcast transmodulator, support 6 modules in back panel, each module with 2*Independent Satellite DVB-S/S2/T/T2/C/ISDB-T/ATSC-T input with 2*CI slots for CI standard CAM Card for decrypt the encrypted channels, total max 12 tuners input, 4/8/12 tuners input option. Not only tuners input, this item supports tuners and HDMI mixed input.
DIGICAST DMB-24E-CI Transmodulator is a high density demodulating and modulation all in one digital broadcast headend equipment that has 24 FTA tuner inputs or 12*Tuners with CI slots to convert to 4 or 8/16 RF carrier outputs with multiplexing. It also supports 128*MPTS/ SPTS UDP/IP inputs and 1*MPTS & 127*SPTS UDP/RTP IP output through DATA port and TS input for re-mux through 2 ASI ports.
Main Features
✦Input Version:
1: Up to 12 Encrypted Tuners input(Max 12 Tuners input whatever which types input,4/8 tuners option)
2: 2*Types Tuners+HDMI input -- For example: 4*DVB-S/S2 encrypted + 4*DVB-T/T2 FTA + 4*HDMI
3: 1*Type Tuner+ HDMI input: 4 DVBS/S2 + 8*HDMI（Tuner Can be FTA or encrypted)
✦ 4 separate multiplexing and Up-converter modulating adjacent carrier out, Output RF standard support DVB-T/DVB -C/ATSC/ISDB-T/DTMB option from UI, only need reboot the device after switch the output RF standard
✦ IP output: 8*MPTS&512*SPTS when 8*RF out
✦ IP input: 128*SPTS/MPTS input
✦ PID Remapping & Filtering
✦ PSI/SI editing & inserting
✦ Low cost solution for Hotel TV System
✦ Support PCR correct and PCR interval adjusting
✦ Superior Shoulders and Excellent modulation quality MER
✦ Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours
✦ Easy-to-Use System Management via Web
✦ Highly compact , High-Integrate Support LCN (Logical Channel Number)
1: Up to 12 Encrypted Tuners input(Max 12 Tuners input whatever which types input,4/8 tuners option)
2: 2*Types Tuners+HDMI input -- For example: 4*DVB-S/S2 encrypted + 4*DVB-T/T2 FTA + 4*HDMI
3: 1*Type Tuner+ HDMI input: 4 DVBS/S2 + 8*HDMI（Tuner Can be FTA or encrypted)
Operation via LCD Screen and Web Management: Easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer
✦ Two separate ASI input for External TS Multiplexing✦ 4 separate multiplexing and Up-converter modulating adjacent carrier out, Output RF standard support DVB-T/DVB -C/ATSC/ISDB-T/DTMB option from UI, only need reboot the device after switch the output RF standard
✦ IP output: 8*MPTS&512*SPTS when 8*RF out
✦ IP input: 128*SPTS/MPTS input
✦ PID Remapping & Filtering
✦ PSI/SI editing & inserting
✦ Low cost solution for Hotel TV System
✦ Support PCR correct and PCR interval adjusting
✦ Superior Shoulders and Excellent modulation quality MER
✦ Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours
✦ Easy-to-Use System Management via Web
✦ Highly compact , High-Integrate Support LCN (Logical Channel Number)
Product Description
|
FTA Tuners input(optional)
|
||
|
DVB-S/S2
|
Input Frequency
|
950-2150MHz
|
|
Symbol rate
|
2~45Mbauds (DVB-S QPSK)
1~45Mbauds (DVB-S2 QPSK) 2-30Mbauds(DVB-S2 8PSK)
|
|
|
FEC Demodulation
|
1/2, 2/3, 3/4, 5/6, 7/8(DVB-S QPSK)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10（DVB-S2 QPSK/8PSK) |
|
|
DVB-T/T2
|
Frequency Range
|
30MHz-1000Mhz
|
|
Bandwidth
|
6Mhz, 7Mhz, 8Mhz
|
|
|
FEC Demodulation
|
DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2:1/2, 3/5, 2/3, 3/4, 4/5, 5/6
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM, 256QAM (Only DVB-T2)
|
|
|
ISDB-T
|
Frequency range
|
30-900MHz
|
|
Bandwidth
|
6MHz
|
|
|
Constellation
|
DQPSK,QPSK,16QAM,64QAM
|
|
|
FEC(code rate)
|
1/2,2/3,3/4,5/6,7/8
|
|
|
Interleave
|
0,4,8,16
|
|
|
ATSC
|
Frequency range
|
50-860MHz
|
|
Input level
|
-34 to +40dBmV
|
|
|
Constellation
|
8-VSB
|
|
|
Bandwidth
|
6MHz
|
|
|
DVB-C
|
Stanard
|
J83.A(DVB-C,J83.B,J.83.C)
|
|
Constellation
|
Annex A(16,32,64,128,256),AnnexB(64,256),AnnexC(64/256)
|
|
|
Bandwidth(MHz)
|
Annex A(8),AnnexB(6),AnnexC(6)
|
|
|
Symbol Rate
|
Annex A(5-7),AnnexB(5.057,5.361),AnnexC(4.2-5.3)
|
|
|
Descrambling
|
CAM/CI Quantity: 2
2 independent common interface slots |
|
|
ASI and IP input
|
||
|
ASI input
|
2*ASI input, BNC, 75Ω, 188Bytes
|
|
|
IP input
|
128*IP(SPTS/MPTS)
|
|
|
ASI and IP output
|
||
|
ASI Output
|
2 * ASI output, 75Ω, BNC, 188Bytes
|
|
|
IP Output
|
8*MPTS&512*SPTS when 8*RF out
|
|
|
Modulation
|
||
|
DVB-T Modulation
|
Modulation standard: EN300 744, EN304 744
Bandwidth: 6M, 7M, 8M
Constellation: QPSK, 16QAM, 64QAM FFT mode: 2K, 8K Guard interval: 1/4, 1/8, 1/16, 1/32 FEC: 1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
ATSC-T Modulation
|
Modulation standard: ATSC A/53
Constellation: 8VSB |
|
|
DVB-C Modulation
|
Modulation standard: J.83A(Europe), J.83B(North America), J.83C(Japan)
Constellation: J.83A-6/32/64/128/256QAM; J.83B-64/256QAM; J.83C-64/256QAM Symbol rate: J.83A-5 ~ 7MSymbol/s, J.83B - fixed; J.83C - fixed Bandwidth: J.83A - 8M, J.83B - 6M, J.83C - 6M |
|
|
ISDB-T Modulaation
|
Modulation standard: ARIB STD-B31
Modulation mode: mode 1(2k), mode 2(4k), mode 3(8k) Constellation: DQPSK, QPSK, 16QAM, 64QAM Internal code: FEC (1/2, 2/3, 3/4, 5/6, 7/8) External code: RS (204, 188) Guard interval: 1/4, 1/8, 1/16, 1/32 Bandwidth: 6MHz |
|
|
DTMB Modulation
|
Modulation standard: GB20600-2006
Bandwidth: 8MHz Constellation: 4QAM, 4QAM-NR,16QAM, 32QAM, 64QAM Quantity of modulation carriers: 1(single carrier) or 3780(multi-carriers) Guard intervals: PN420, PN595, PN945 Internal error correction code: LDPC Encoding efficiency: 0.4, 0.6, 0.8 Interlace depth: 240, 720 |
|
|
GENERAL OPTION
|
||
|
Management
|
Connector: 1*RJ-45, 100/1000M Ethernet interface.
Remote upgrade:via network Configuration interface: web browser ,NMS
|
|
|
Physical and power
|
Power Supply: 110 ~220V
Consumption 18-20W Operational temperature: 0~50°C Storage temperature: -10~70°C Humidity: 10%-90% Dimension: 560mm(W)×530(D)mm×150mm(H) Weight: 10kg |
|
