Overview

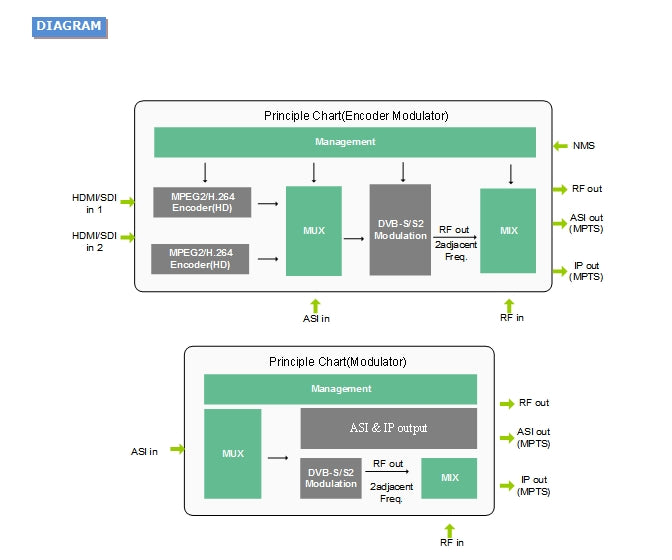

DMB-9582 MPEG-2/H.264 HD Encoding & Modulator(all-in-one) is a high-density and flexible device, integrating Encoding, Multiplexing, Encapsulation and Modulation with its excellent performance of HD encoding and modulation to convert V/A signals into DVB-S/S2 RF output. It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (HDMI/CVBS/SDI/YPbPr/…) as needed and it also can be used as modulator without any encoding module. To meet customers’ various requirements,It is also equipped with 1 ASI input for re-mux, and output with 2 ASI ports and 1 IP port.

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. With its various inputs available and special modulation index,DMB-9582 Series encoder modulators are especially adequate for inserting DVB-S/S2 signal in the cable system to add programs in the DVB-S/S2 TVs or STBs.

Features

• HDMI/CVBS/SDI/YPbPr… inputs，1*ASI in for re-mux; 1*RF in for RF mix
• MPEG2 HD/SD & MPEG4 AVC H.264 HD/SD video encoding
• MPEG4-AAC; MPEG2-AAC; MPEG1 Layer Ⅱand Dolby Digital AC3 2.0( Optional) audio encoding
• Dolby Digital AC3 passthrough (for HDMI of HDMI/YPbPr/CVBS 3-in-1)
• Dialog Normalization（Optional）
• Support CC (closed caption ) for SDI and CVBS interface (Optional)
• Support low delay encoding mode
• Support VBR/CBR rate control mode
• Support PSI/SI editing
• Support PCR accurate adjusting
• Support PID re-mapping and passthrough
• DVB-S/S2 RF out and ASI out; IP out
• Modular design, pluggable encoding modules
• LCD display, Remote control and firmware
• Web-based NMS management; Updates via web
