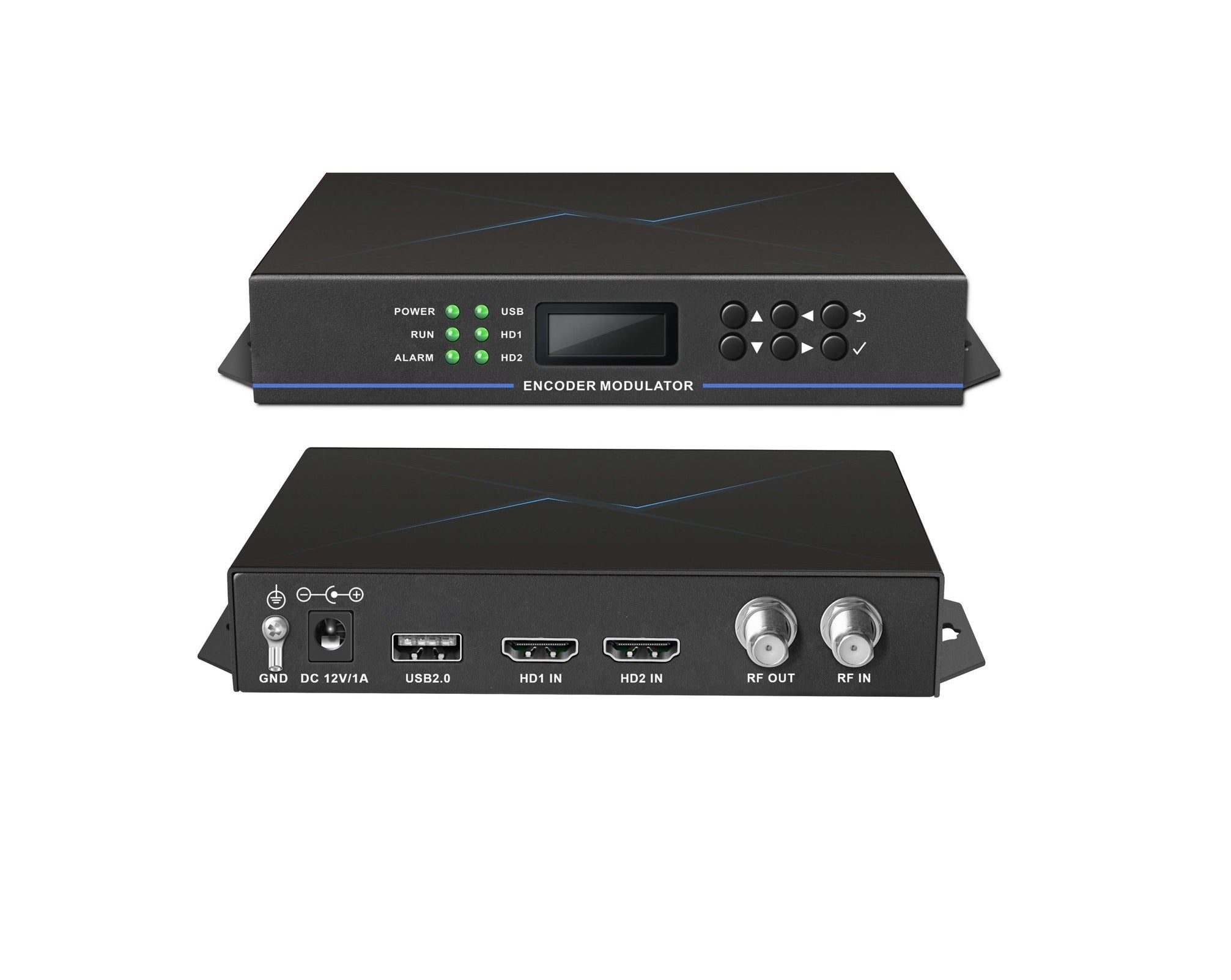

DMB-9591 H.264 HD Encoding & Modulator has entered public places such as malls, hotels and restaurants, schools all over the world, as well as thousands of households, with its features of cute structure, convenient and flexible applications, high cost-efficiency and so on. The device integrates functions of video compression encoding...
DMB-9591 H.264 HD Encoding & Modulator has entered public places such as malls, hotels and restaurants, schools all over the world, as well as thousands of households, with its features of cute structure, convenient and flexible applications, high cost-efficiency and so on. The device integrates functions of video compression encoding and modulation.
It accepts 2* HDMI and 1* USB input signal,It adopts with a RF loop input port which is convenient for users to mix multiple outputs or mix with antenna signals. the resolution of HDMI input up to 1080P, with DVB-T/DVB-C/ ISDB-T /DTMB standard RF output, for the convenience of acceptance by subscribers, and realize real-time video transmission and broadcast. DMB-9591 is especially suitable for variety of video applications like, home entertainment, video advertisement for malls, restaurants’ band panel, security and protection monitoring, etc.. It will serve more and more groups, as the growing demand of video from the society.
Features
* Smart structure with powerful functions
* Advanced compression for H.264 HD
* Insertable LCN(Logic Channel Number)
* Support 2 HD signals and 1 USB video signal input
* Support multi-standard digital systems
* Support TS re-multiplexing
* Support H.264 encoding
* Support 1 external RF signal loop in and internal modulation signal mixed into 1 RF output
* Frequency agile design, RF output frequency can be set freely within the frequency range
* Easy configuration by built-in web UI, or buttons and LCD on front panel
* Advanced compression for H.264 HD
* Insertable LCN(Logic Channel Number)
* Support 2 HD signals and 1 USB video signal input
* Support multi-standard digital systems
* Support TS re-multiplexing
* Support H.264 encoding
* Support 1 external RF signal loop in and internal modulation signal mixed into 1 RF output
* Frequency agile design, RF output frequency can be set freely within the frequency range
* Easy configuration by built-in web UI, or buttons and LCD on front panel
ENCODING MODULES
H.264 HD Encoding module
* Video input: 2*HDMI
* Video compression standard: H.264 HD
* Video resolution: 1920*1080 60P、1920*1080 50P、1920*1080 60i、1920*1080 50i、1280*720 60P、1280*720 50P
H.264 HD Encoding module
* Video input: 2*HDMI
* Video compression standard: H.264 HD
* Video resolution: 1920*1080 60P、1920*1080 50P、1920*1080 60i、1920*1080 50i、1280*720 60P、1280*720 50P
|
|
Video encoding
|
Standard
|
H.264
|
|
Channels
|
2CH
|
||
|
Resolution
|
1920*1080 60P、1920*1080 50P、1920*1080 60i、
1920*1080 50i、1280*720 60P、1280*720 50P |
||
|
Bit rate
|
1-19.5Mbps
|
||
|
|
Standard
|
MPEG 1 Layer II
|
|
|
Sampling Frequency
|
48KHz/44.1 KHz/32 KHz
|
||
|
Bitrate
|
384Kbps
|
||
|
|
Interface Standard
|
USB2.0
|
|
|
Video format
|
TS, MPG
|
||
|
|
Standard
|
Annex A
|
|
|
Constellation
|
16QAM,32QAM,64QAM,128QAM,256QAM
|
||
|
MER
|
≥40dB
|
||
|
RF Frequency Range
|
50-999.999MHz, Min. step of 1KHz
|
||
|
Output Level
|
≥100dBuV(range 0-20dB, step of 0.5dB)
|
||
|
Out-of-band Suppression
|
≥60
|
||
|
Symbol Rate
|
5-6.900Msps
|
||
|
|
Standard
|
Annex B
|
|
|
Constellation
|
64QAM,256QAM
|
||
|
MER
|
≥40dB
|
||
|
RF Frequency Range
|
50-999.999MHz, Min. step of 1KHz
|
||
|
Output Level
|
≥85dBuV(range 0-20dB, step of 0.5dB)
|
||
|
Out-of-band Suppression
|
≥60
|
||
|
Cable Standard
|
HRC, IRC or STD
|
||
|
Symbol Rate
|
5-6.900Msps
|
||
|
|
Standard
|
ATSC A/53
|
|
|
MER
|
≥40dB
|
||
|
Output Level
|
≥100dBuV(range 0-20dB, step of 0.5dB)
|
||
|
|
Standard
|
DVB-T COFDM
|
|
|
Bandwidth
|
6/7/8MHz
|
||
|
Constellation
|
4QAM, 16QAM, 64QAM
|
||
|
Code Rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
||
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
||
|
Transmit Mode
|
2K,4K,8K
|
||
|
MER
|
≥40dB
|
||
|
RF Frequency Range
|
50-999.999MHz, Min. step of 1KHz
|
||
|
Output Impendence
|
75Ω
|
||
|
Output Level
|
≥100dBuV(range 0-31.5dB，step of 0.5dB)
|
||
|
Out-of-band Suppression
|
≥60dB
|
||
|
|
Standard
|
ARIB STD-B31
|
|
|
Bandwidth
|
6MHz
|
||
|
Constellation
|
DQPSK, QPSK, 16QAM, 64QAM
|
||
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
||
|
Transmit Mode
|
2K, 4K, 8K
|
||
|
MER
|
≥42dB
|
||
|
RF Frequency Range
|
50-999.999MHz, Min. step of 1KHz
|
||
|
Output Impendence
|
75Ω
|
||
|
Output Level
|
≥100dBuV(range 0-20dB，step of 0.5dB)
|
||
|
Out-of-band Suppression
|
≥60dB
|
||
|
|
Standard
|
GB20600-2006
|
|
|
FFT
|
1,3780,1+pilot
|
||
|
MER
|
≥40dB
|
||
|
FEC
|
0.4,0.6,0.8
|
||
|
Interleave Mode
|
420,595,945,420var,945var
|
||
|
Sync Frame
|
240,720
|
||
|
Constellation
|
4QAM-NR,4QAM,16QAM, 32QAM,64QAM
|
||
|
RF Frequency Range
|
50-999.999MHz, Min. step of 1KHz
|
||
|
Output Level
|
≥100dBuV(range 0-31.5dB，step of 0.5dB)
|
||
|
Output Impendence
|
75Ω
|
||
|
Out-of-band Suppression
|
≥60dB
|
||
