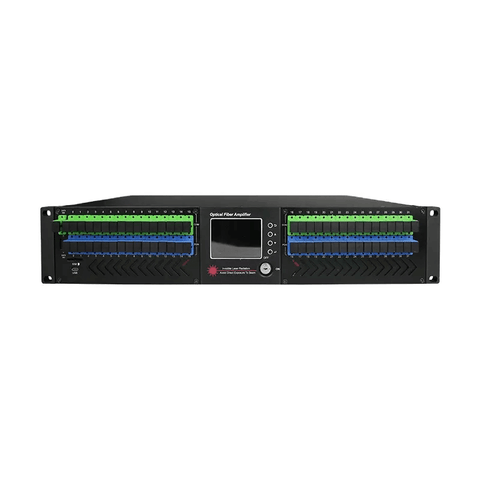

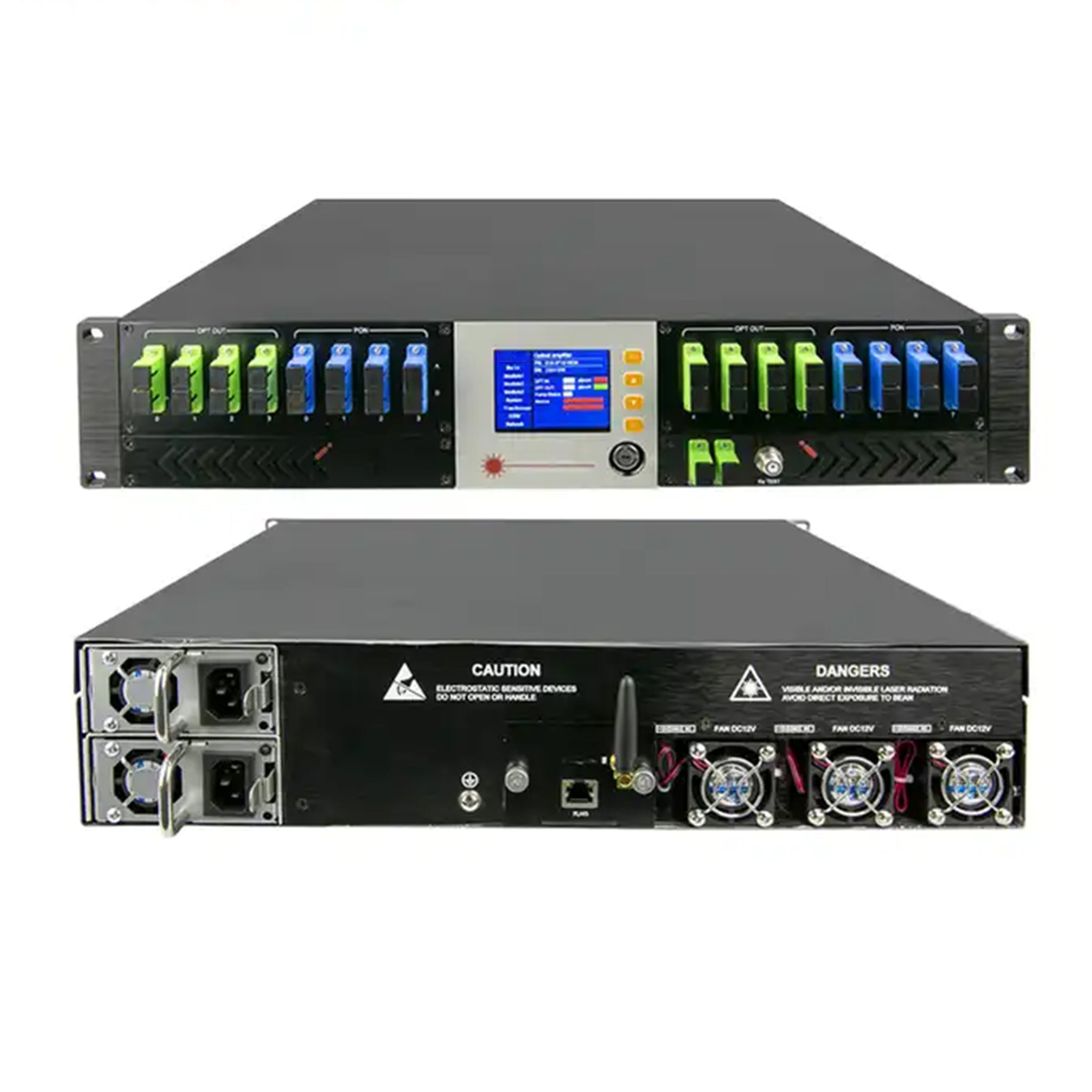

EDFA 16 32 port 19 20 21 22 23 dbm CATV WDM EDFA amplifier high power EDFA
$899.00
Overview What is EDFA? When optical transmitting over long distance, the optical signal has to be amplified many times because of the signal loss from fiber attenuation, connectivity losses, fiber splicing losses, etc. Before optical amplifier is invented, the optical signal has to be first converted into electrical signal, amplified, and...
Overview
What is EDFA? When optical transmitting over long distance, the optical signal has to be amplified many times because of the signal loss from fiber attenuation, connectivity losses, fiber splicing losses, etc. Before optical amplifier is invented, the optical signal has to be first converted into electrical signal, amplified, and then converted back to optical signal again. The process is very complicated and expensive. EDFA Optical amplifier can amplify signals directly, this process is significantly cheaper and started a fiber optic revolution. EDFA, or Erbium-doped Fiber Amplifier, uses the Erbium-doped fiber as optical amplification medium to directly enhance the signals. The amplifying medium is a glass optical fiber doped with erbium ions. The erbium-doped fiber gain medium amplifies light at wavelengths that are in the neighborhood of 1550 nm—the optical wavelengths that suffer minimum attenuation in optical fibers. EDFA works best in the range 1530 to 1565 nm, and it possesses low noise and can amplify many wavelengths simultaneously, making it the fiber amplifier of choice for most applications in optical communications
What is WDM? Wavelength Division Multiplexing (WDM: Wavelength Division Multiplexing) is a technology that simultaneously transmits multiple wavelength signals in an optical fiber. WDM technology increases the transmission capacity of an optical fiber several times to tens of times or even hundreds of times compared with single-wavelength transmission, thereby increasing the transmission capacity of the optical fiber, reducing costs, and having great application value and economic value.
PON+EDFA application EDFA optical amplifier mainly used for 1550nm, which make CATV over fiber tranmission more distance. The PON work with EDFA by FWDM, which realize triple FTTH application.
Feature
◆High Power: Up to 2W total, 1 Unit for 2000～4000 optical node
◆Low Noise Figure: Below 5.5dB ( +5dBm input)
◆Er Yb co-doped DCF Amplify Technology：Patent Pump Dump Technology
◆Low CSO: ＜-70dBc
◆23dBm×N, 20dBm×N or 17dBm×N output is optional
◆Controllability and maneuverability: Dual CPU to deal Control loop and Communication separately
◆High Stability And Reliability: MTTF＞150000 Hours
◆Redundancy Hot Swap power module: 110/220VAC and 48VDC can plug Mix
◆Perfect Network Interface: Ethernet
◆Support SNMP network management
◆Intelligent Temperature Control System: using a dedicated Temperature control chip which make cooling and power loss reduce 30% than competitors
◆Output Power can be Adjustable by network and manual
◆Integrated 1310nm, 1490nm, 1550nm WDM (Optional)
◆OEM, Module is available
Specifications
|
|
||||
|
Item
|
Unit
|
Specification
|
Note
|
|
|
CATV wavelength
|
nm
|
1535~1565
|
Central wavelength 1550nm
|
|
|
PON OLT wavelength
|
nm
|
1310/1490
|
Customized
1270/1577
|
|
|
CATV Input Power Range
|
dBm
|
-5dBm~+10dBm
|
Limit Range -10dBm~+10dBm
|
|
|
Max Total Output Power
|
dBm
|
41
|
|
|
|
Output Power Stability
|
dB
|
±0.1
|
|
|
|
Noise
|
dB
|
≤ 6
|
|
|
|
Return Loss
|
Input
|
dB
|
≥ 45
|
|
|
Output
|
dB
|
≥ 45
|
|
|
|
OSW
|
Input port
|
|
2
|
Optional
|
|
Insertion loss
|
dB
|
≤1.5
|
||
|
Switching time
|
s
|
＜0.5
|
||
|
Direct Modulation Transmitter
|
Wavelength
|
nm
|
1550
|
Optional
|
|
Input level
|
dBuV
|
75~90
|
||
|
Output power
|
dBmW
|
3/5/7/10
|
||
|
RF Test
|
Output level
|
dBuV
|
≥56
|
Optional
|
|
Optical Connector
|
|
SC/APC；SC/PC；LC/APC；LC/PC
|
Customized
|
|
|
C/N
|
dB
|
≥ 50
|
Testing conditions are carried out according to GT/T 184-2002
|
|
|
C/CTB
|
dB
|
≥ 63
|
|
|
|
C/CSO
|
dB
|
≥ 63
|
|
|
|
Power Supply Voltage
|
V
|
AC90V~AC265V
|
|
|
|
Consumption
|
W
|
＜ 150
|
|
|
|
Operating Temperature
|
℃
|
-5 - +50
|
|
|
|
Max Operating Humidity
|
%
|
Maximum 95% non-condensing
|
|
|
|
Storage Temperature Range
|
℃
|
-40 ~ +80
|
|
|
|
Max Storage Humidity
|
%
|
Maximum 95% non-condensing
|
|
|
|
Size
|
mm
|
602(L)*480(W)*89(H)
|
|
|
|
Package Size(1pc)
|
mm
|
635(L)*635(W)*155(H)
|
|
