DMB-8900A-EC Ultra is Latest ProVideo Streaming Encoder which designed by Digicast, it features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video &Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/(4.2.0 8bit/4.2.2 8bit/4.0.0 8bit/4.2.0 10bit/4.2.2 8bit/4.0.0 8bit), which realizes its resolution to be up to 4K@60.

With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth.

DMB-8900A-EC Ultra supports one channel HDMI input and one channel SDI input, both capable of delivering stunning 4K@60 resolution,with multi-protocol, multi-resolution which can be freely adjusted according to your needs. Moreover, it provides username and password matching function required from a destination server, aiming at avoiding unauthorized streaming.

DMB-8900A-EC Ultra provides fully functional second development package, With its advanced encoding technology, this H.265 video encoder is ideal for a wide range of applications, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

Features

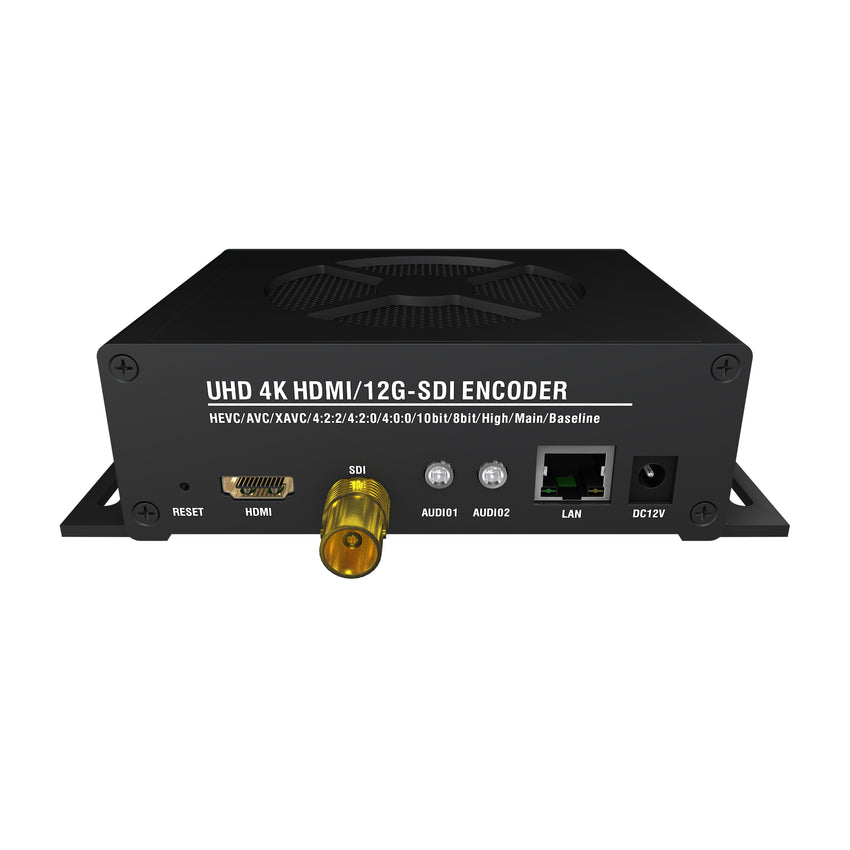

Input version: UHD HDMI + 12G-SDI Input

Supporting up to 2 TS over IP stream out.one channel with 4K@60+one channel with 1080p@60

Switchable audio output mode: Left, right and Stereo

Display on multi-screens from a computer is available

Workable under RTMP/ RTSP/ RTSP(S) /HTTP TS/HTTP FLV/HLS/SRT /UDP multicast and

RTP multicast (Username and password verification allowed under RTMP)

Support ONVIF network video protocol

Multi-protocol, multi-resolution and multi-bitrate are configurable

Any iOS device browser (iPhone, iPad, MacBook) is able to have streams from IPTV

Streaming Encoder Anytime, Anywhere by HLS protocol without installing any software

Any terminal device/decoder is able to have streams from IPTV Streaming

Encoder directly by RTMP protocol with software players(such as VLC)

Transport method: TCP,UDP,1000M (RJ45 duplex interface)

Web-based management easy for configuration.

Scrollable English OSD, picture overlay and logos are supported so that letters and symbols can be displayed anywhere in the screen

Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance.

Image setup: contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering

Able to encode with absence of video signal

The setting comes into effect once finished while reboot is unnecessary

Default configuration can be done by one key recovery

WINDOWS XP/VISTA/SERVER 2003/SERVER 2008/WIN7 32 and WIN7 64, LINUX

Application

IPTV & OTT system

 Internet TV

Digital Signage Project

Remote Video Conference

Video Monitoring

Live Streaming

Digital TV Broadcasting System

Digital TV Programs Transmission

Head-end system of Digital TV branch network

CATV Broadcasting system

Edge side of Digital TV backbone network
