DMB-5100 UDP RTP IP to 32 DVB-T modulator

$0.00

Overview DMB-5100 28 in 1 ISDB-T & 32 in 1 DVB-T & 48 in 1 DVB-C is the latest generational Mux-modulating ip rf processor. It supports maximum 128 IP input through the 3 GE/SFP port and 2 GE ports, 32 IP input through the 10 FE port, and also has...

Quantity :

Brand : DIGICAST

Product Type : IP ASI to RF Modulator

Availability : 1000 In Stock

Overview

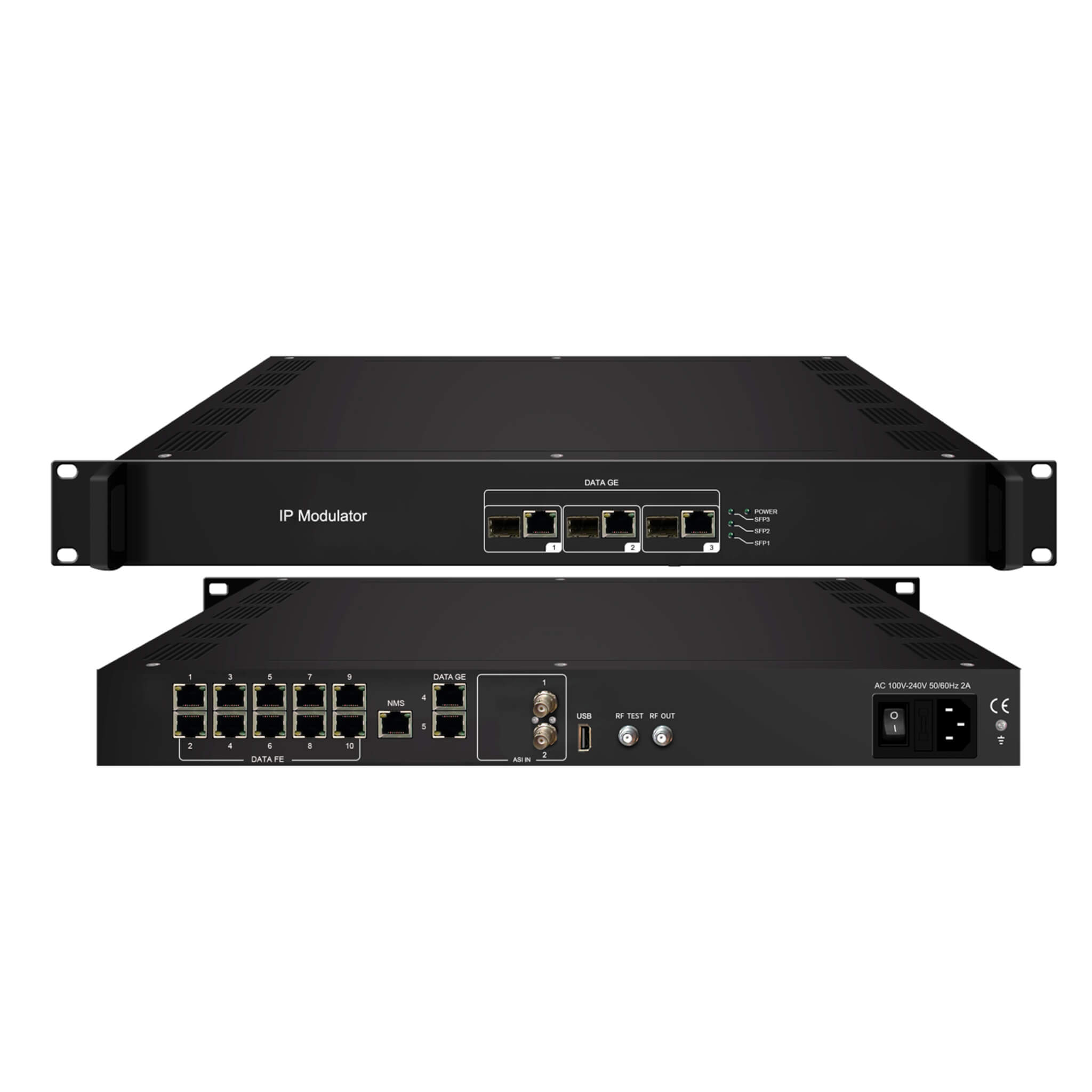

DMB-5100 28 in 1 ISDB-T & 32 in 1 DVB-T & 48 in 1 DVB-C is the latest generational Mux-modulating ip rf processor. It supports maximum 128 IP input through the 3 GE/SFP port and 2 GE ports, 32 IP input through the 10 FE port, and also has 2 ASI input. After 28&32&48 multiplexing, it gives 28 ISDB-T & 32 DVB-T & 48 DVB-C non-adjacent carriers (50MHz~960MHz), 28&32&48 IP (MPTS) output as mirror of carriers. The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.

Features

3 RJ45 /SFP GE ports (each port max 128 IP in):
Data1&2&3 ports only for input
2GE ports (each port max 128 IP in): Data4 is input ports
Data5 is bi-directional ports, 28&32&48 IP MPTS out (as mirror of 28 ISDB–T&32 DVB-T &48 DVB-C out version)
10 FE ports (each port max 32 IP in):
Date1-Date10 all for input
Supports accurate PCR adjusting
Max 840Mbps for each input
Supports PID remapping and PSI/SI editing , PIDs remapping per channel
Supports up to 256/ Supports 2*ASI input
Support 28 &32 &48 multiplexed TS over UDP/RTP output
28 ISDB-T /32 DVB-T /48 DVB-C non-adjacent carriers output, compliant to ARIB STD-B31 standard/ ETSI EN300 744 standard/ DVB-C (EN 300 429) and ITU-T J.83 A/B/C
Support Web-based Network management

Input

28 ISDB-T &32 DVB-T & 48 DVB-C carriers: Max 128 IP input through Date1-Date5, 100/1000M Ethernet Port (Date1-Date3 are SFP interface optional). Each Data port can input max 128 IP.

Max 32 IP input through Date1-Date10 (FE port, Rear panel), 100M Ethernet Port, Each Data port can input max 32 IP.

2ASI input, BNC interface

Transport Protocol

TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Transmission Rate

Max 840Mbps for each input channel

MUX

Input Channel 128(or 32)

Output Channel Max 28(ISDB-T) or 32 (DVB-T) or 48(DVB-C)

Max PIDs 256 per channel

Functions PID remapping(auto/manually optional)

PCR accurate adjusting

PSI/SI table automatically generating

Modulation

ISDB-T(16/20/24/28*ISDB-T Carriers option)

Standard: ARIB STD-B31

Bandwidth: 6MHz

Constellation: QPSK, 16QAM, 64QAM

Transmission Mode: 2K, 4K, 8K

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

MER: ≥40dB

RF frequency: 50~960MHz, 1KHz stepping

Interface:F typed output port for 28 non-adjacent carriers

RF output level: -20dBm~+3dBm, 0.1dB stepping

DVB-C(32/36/40/44/48 carriers out option)

Standard : J.83A

Constellation :16/32/64/128/256QAM

Bandwidth :8M

J.83B/C

Constellation :64/256QAM

Bandwidth :6M

QAM Channel：32/36/40/44/48(License gradable)

MER: ≥40db

RF frequency : 50~960MHz, 1KHz stepping

RF output level: -20dBm~-3dBm(87~104dbµV), 0.1dB stepping

Symbol Rate: 5.0~7.0Msps, 1ksps stepping. 5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM)

Constellation: 16, 32, 64 , 128, 256QAM

DVB-T(16/20/24/28/32 carriers option)

Standard: ETSI EN300 744

Transmission Mode: 2K,4K, 8K

Bandwidth: 6M, 7M, 8M

Constellation: QPSK, 16QAM, 64QAM

Guard Interval : 1/4, 1/8, 1/16, 1/32(License gradable)

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

MER: ≥40 dB

RF frequency: 50~960MHz, 1KHz stepping

RF output level: -20dBm~0dBm(87~107dbµV), 0.1dB stepping

TS output

28&32&48 IP output over UDP/RTP

Unicast/multicast

Data1 100/1000M Ethernet Ports

System function

Web-based Network management

Dimension (W×L×H): 420mm×440mm×44.5mm

Environment: 0~45℃(work)；-20~80℃（Storage）

Power requirements : AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz
