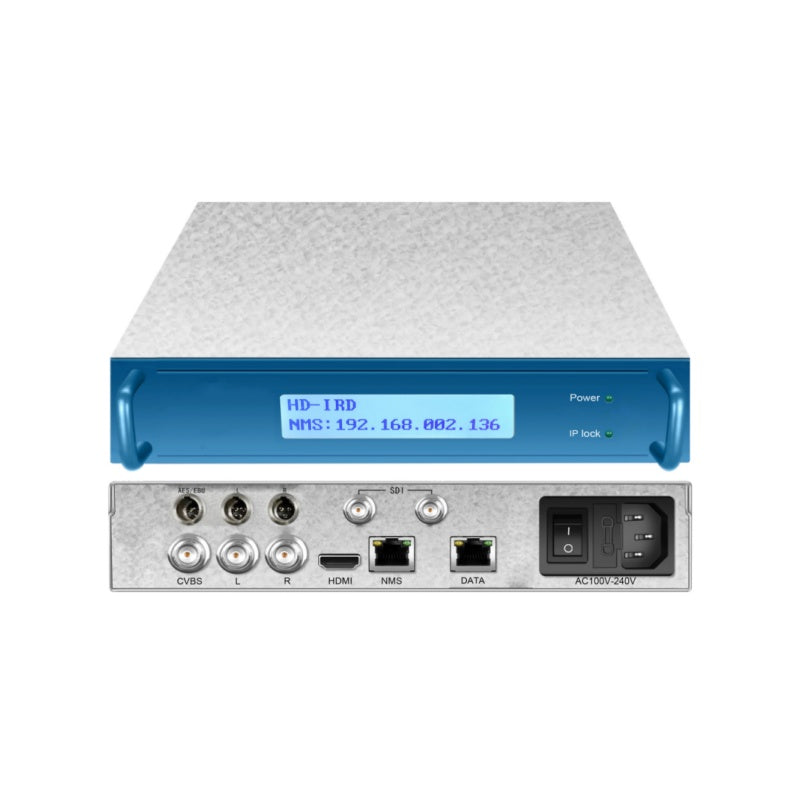

1/2 U mini Portable Professional SRT to HDMI SDI Decoder with AES EBU audio
DMB-9020S MIINI Network decoder support AVS+/H.265/H.264/MPEG2 video decoding and DRA/AC3/EAC3/AAC/MPEG audio decoding.
It also support SRT/UDP/HTTP/HTTPS/HLS/M3U8/RTSP/RTMP/MMS/Bluary IP input protocol and 1080P/1080I/ 720P/576I/480I output resolution.
Support multiple network protocol inputs
Support CVBS/HDMI/SD/HD SDI/AES/EBU output
Support SRT/UDP/HTTP/HTTPS/HLS/M3U8/RTSP/RTMP/MMS/Bluray IP protocol
Support H.265 HEVC/H.264/MPEG2 video decoding
Support AC3/EAC3/AAC/MPEG audio decoding
Support Biss_1/Biss_E descrambling mode
Support HD and SD signal input
Resolution can be automatically identified or manually set
Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD
B/S based web management
Specification
|
TS over IP |
Interface |
1*RJ-45, 100/1000 Base-T |
|
Frame length |
(1~7)x188 adjustable byte |
|
|
IP output protocol |
SRT/UDP/RTP/HTTP/HTTPS/HLS/M3U8/RTSP/RTMP/MMS/Bluray |
|
|
HDMI output |
Interface |
1*HDMI |
|
Resolution and frame rate |
1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/ 480P/480I |
|
|
Embed audio |
2 stereo |
|
|
Video decoding |
Decoding format |
MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC) |
|
Audio decoding |
Decoding format |
MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/EAC3 |
|
HD/SD-SDI output |
Interface |
2*BNC, 75Ω |
|
SD-SDI output |
SMPTE 259M, 270Mb/s(10bit) |
|
|
HD-SDI resolution |
SMPTE 292M, 1.485 Gbit/s(20bit) |
|
|
Output |
Level 800mV+-20 p-p |
|
|
Analog audio output |
audio interface |
2*BNC, 2*XLR |
|
Output audio format |
Left, Right, Dual Mono, Stereo |
|
|
Digital audio output |
Interface |
1*AES/EBU |
|
Analog Video output |
video interface |
1*BNC, 75Ω |
|
Output Level |
1.0Vp-p±5% |
|
|
CVBS format |
PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ |
|
|
Video SNR |
≥56dB |
|
|
Video sync amplitude |
300±20mVP-P |
|
|
Video amplitude characteristic |
±0.8Db(4.8MHz) ±1dB(4.8-5MHz) ±0.5/-4dB(5.5MHz) |
|
|
Video output amplitude |
700±30mVP-P |
|
|
Differential gain |
≤8% |
|
|
Data output |
Subtitle |
DVB/EBU |
|
Teletext |
DVB/EBU |
|
|
Closed Caption |
EIA 608, EIA 708, EIA 608-to-708 |
|
|
Local and remote management |
Interface |
1*RJ-45, 10/100 Base-T |
|
Remote management |
HTTP Web |
|
|
Local management |
Front pannel button and LED |
|
|
Device upgrade |
IP |
|
|
Miscellaneous |
Dimension (W×L×H) |
450mm×300mm×44mm |
|
Net Weight |
5Kg |
|
|
Power |
AC 90V~250V, 50/60Hz |
|
|
Consumption |
24W |
|
|
Temperature |
0~45℃(work)；-10~60℃(Storage) |
|
|
Humidity |
10~90%(Non-Condensing) |
