OVERVIEW

TSC-2301B Tuner to IP Gateway works with TS over IP technology. De-modulate the Tuner signals to DVB-ASI signals, encapsulating TS over IP signals transmission. Meanwhile capable of multiplexing, SimulCryption, DVB-CSA scrambling, BISS decryption. This Tuner to IP Gateway can accept 8*Tuner(DVB-S/S2/T/T2/C/ISDB-T/Tb/ATSC) input signals, de-modulate to 2*ASI(independent) output and encapsulate to IP packet, then output 246*SPTS or 14*MPTS over IP addresses or ports. Adopting Gigabit Ethernet interface, TSC-2301B Tuner to IP Gateway features high I/O bit rate, powerful correction capability, low error rate, etc.. It has become the bridge between the new generation IP network and traditional DVB network, which is suitable for IPTV & OTT head-end contribution system.



FEATURES

  • Tuner inputs support DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T/Tb/ATSC for option
  • Each Tuner input with loop out interface, for the convenience of next device
  • Up to 246*SPTS or 14*MPTS output over IP addresses or ports via GigE
  • IP transmission follows UDP, RTP, ARP, ICMP, IGMP protocol
  • Capable of multiplexing,SimulCryption,DVB-CSA scrambling(optional),BISS decryption.
  • Realize optimum transmission performance in low latency
  • Easy and convenient operation, with keyboard on front panel and LCD display
  • Web-based management



SPECIFICATIONS

Transport Stream Intput
Interface: 8*Tuner(DVB-S/S2/T/T2/C/ISDB-T/Tb/ATSC) input and loop out
RF input range: 950MHz~2150MHz(DVB-S/S2)
Input level: -65~-25dBm
Connector: F-female type, 75ohm
Symbol rate: 2~45Msps for QPSK/8PSK
Rolloff factor: 0.35 for QPSK; 0.35,0.25,0.2 for 8psk
Convolution: DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 ;
DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
Standard: DVB‐S comply to EN300421
DVB‐S2 comply to EN302307
LNB Power Output: 0V/+DC 13V/18V, Imax=400mA

Transport Stream Output
IP Output
Output: 246*SPTS or 14*MPTS over IP
Interface: GigE port(100/1000M base-T Ethernet),RJ45
Transmission protocol: UDP, RTP, ARP, ICMP, IGMP protocol
Transmission mode: Unicast or Multicast
TS packet Length: 7 x 188Byte

ASI Output
2 x ASI(independent),impendence 75Ω, BNC Female
188/204 Bytes MPEG‐TS per packet length
Bit Rate≤100Mbps each

TS Processing
Capable of multiplexing, BISS decryption, SimulCryption & DVB-CSA scrambling(optional)


GENERAL OPTIONS
Control and Monitoring
Interface: 1*RJ-45,10/100 Base-T network interface
Remote control: web-based management
Local operation: keyboard on front panel, LCD display

Physical and Power
Voltage: 90~260VAC, 50/60Hz
Consumption: 25W
Operating temperature: 0~50°C
Storage temperature: -10~70°C
Relative humidity: 10%~90%(non-condensing)
Dimensions: 430mm(W)×400(D)mm×45mm(H)(19inch,1RU)
Weight: 4 KGS



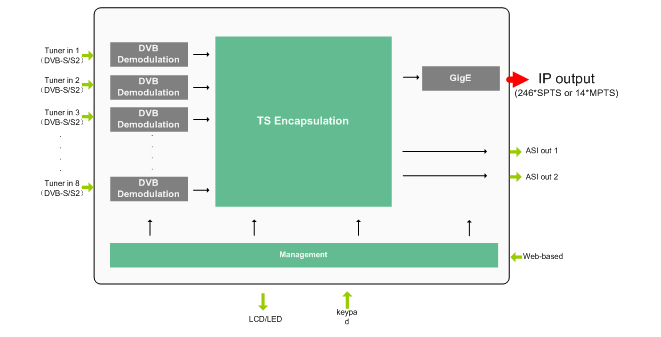

DIAGRAM
