DMB-8910 Two-Channel MPEG-2/H.264 HD Encoder features high performance, low latency and extremely low bit rates for DTV system, and adopts state-of-the-art video compression technology for MPEG-2 and H.264 changing seamlessly. Capable of powerful functions for audio encoding, supports MPEG1 Layer 2, LC-AAC, HE-AAC and AC3 by option. DMB-8910 is designed in standard 1U chassis, with one Hot-Pluggable module (the module can support 2 channels), the device provides input interface 2*HD-SDI or 2*HDMI, moreover, it has 1*ASI and 1*IP(UDP/RTP) output interfaces, after loss-less compression processing, SDI programs can through the ASI and IP ports in MPTS or SPTS. The empty packets filtering capable of IP out not only enable to provide more services in the limited bandwidth, but also largely enhance the utilization of spectrum source of IPTV system.

Features

• Advanced video compression options: HD/SD MPEG-4 AVC/H.264, MPEG-2
• Provides low latency function
• Audio compression: MPEG1 Layer2, LC-AAC, HE-AAC, Dolby AC3(optional)
• Support double power supply
• Providing 2*HD-SDI or 2*HDMI inputs
• Capable of two rate controlling modes VBR/CBR
• Enabling ASI and IP (MPTS&2SPTS) output over UDP, RTP to meet the needs of different systems
• Support IP empty packets filtering
• Closed Caption EIA 608 and EIA 708 can be supported
• Capable of PSI/SI editing and inserting functions
• Flexibly and easily controlled by keyboard on front-panel, LCD display
• Remote managed by web browser via Ethernet interface, maintenance easily

Specifications

VIDEO SPECIFICATIONS
Video compression: HD/SD MPEG-4 AVC/H.264, MPEG-2
Video inputs: 2*HD-SDI or 2*HDMI
Resolution: 1920*1080_60P, 1920*1080_50P (only for H.264/MPEG-4 AVC)
1920*1080_60i, 1920*1080_50i
1280*720_60P, 1280*720p_50P
720*480_60i, 720*576_50i
----------------------------------------------------------
Bit-rate: 0.5Mbps~19.5Mbps for H.264 Encoding
1Mbps~19.5Mbps for MPEG-2 Encoding
Rate Controlling Mode: CBR/VBR
Aspect Ratio: 4:3, 16:9
Chroma Sampling: 4:2:0
Video pre-processing: De-interlacing, Noise reduction, Sharpen

AUDIO SPECIFICATIONS
Audio compression: MPEG-1 Layer2, LC-AAC, HE-AAC(v1&v2), AC3(Optional)
Sampling rate: 48KHz
Sampling accuracy: 24-bit
Encoding bit rate: 64Kbps~320Kbps

OUTPUTS
ASI output
Output channel: 1*ASI, BNC interface
TS standard: EN 50083-9 ASI
Max. output bit rate: 170Mbps
MPEG frame: 188/204 Byte
Reflection loss: >10dB
Connector: 75 ohm, BNC interface
IP output
Transport protocol: UDP/RTP protocol
IP output channel: MPTS/2*SPTS over IP
Support empty packets filtering
Connector: RJ45, 10/100M
GENERAL OPTIONS

General Options

Controlling and monitoring
Connector: 1*RJ-45, 10/100 Base-T (NMS interface)
Remote control: by NMS
The mode of Low Latency: Normal, mode1, mode2
Local control: keyboard on front panel, LCD display
Physical and power
Power Supply: AC 90~260V 50/60Hz
Consumption: 25W
Operational temperature: 0~50ºC
Storage temperature: -10~70ºC
Humidity: 10%-90%(non-condensing)
Dimension: 482mm(W)×400(D)mm×44mm(H)
Weight: 4kg

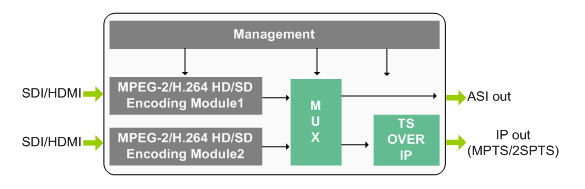

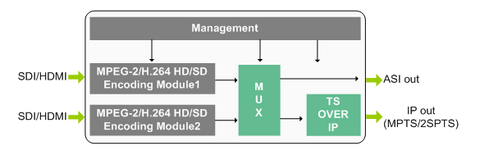

Diagram

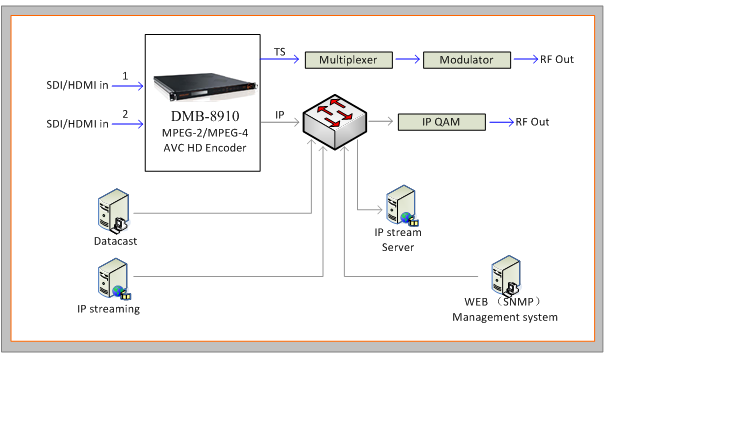

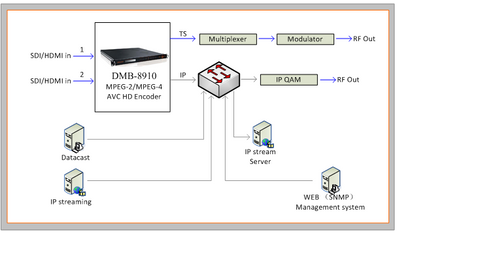

Application
