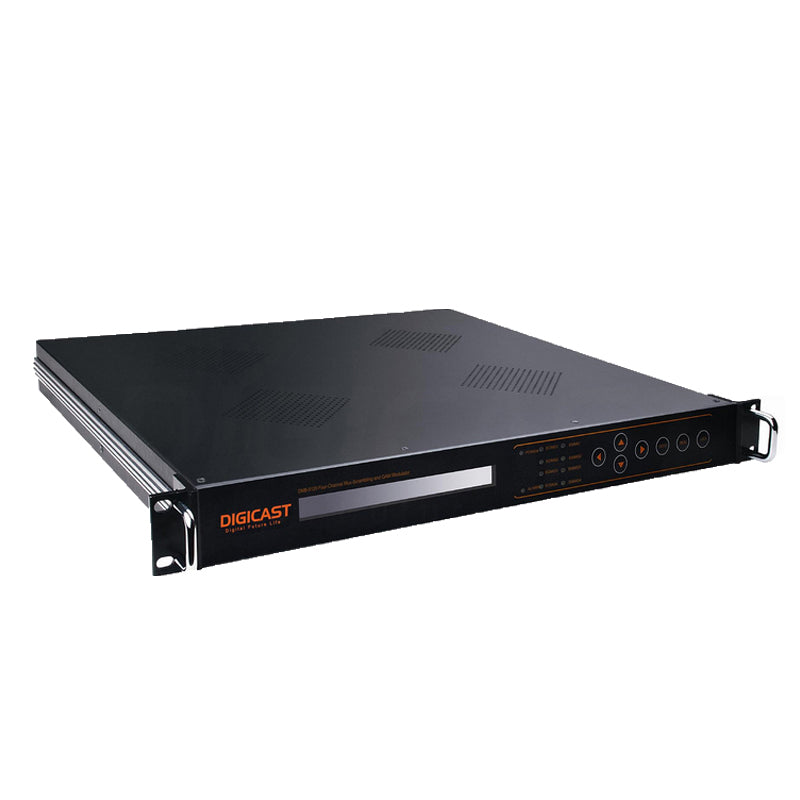

DMB-9580 MPEG-2/H.264 SD Eight-Channel Encoding & Modulator(all-in-one) is a high-density and flexible device, integrating Encoding, Multiplexing, Encapsulation and Modulation with its excellent performance of MPEG-2 and H.264 encoding and modulation. It supports DVB-C modulation with 8-channel of CVBS inputs. The device delivers unrivaled and reliable video quality with advanced video...
-
+

DIGICAST

MPEG-2 SD Encoding & Modulator

2 In Stock

DMB-9580 MPEG-2/H.264 SD Eight-Channel Encoding & Modulator(all-in-one) is a high-density and flexible device, integrating Encoding, Multiplexing, Encapsulation and Modulation with its excellent performance of MPEG-2 and H.264 encoding and modulation. It supports DVB-C modulation with 8-channel of CVBS inputs. The device delivers unrivaled and reliable video quality with advanced video compression (MPEG-2 and H.264/MPEG-4 AVC) technology, with ultra-low compression bit rate, to save bandwidth by transporting more programs within each carrier. Moreover, with its multiplexing module, local programs can be re-multiplexed with external Transport Stream. Additionally, DMB-9580 can be applied to IPTV system with TS over IP output. The device also supports program sources from video and surveillance control camera or HD STB, HD camera or playout server, PC and other diversified video source.



FEATURES

  • Conforms to DVB-C modulation, J.83A/B/C standard
  • Support MPEG-2 and H.264/MPEG-4 AVC HD video encoding
  • Audio encoding: MPEG-1 Layer II, HE-AAC, LC-AAC
  • Equipped with multiplexing module, able to multiplex local programs with external TS
  • Support TS over IP out, applied to IPTV applications
  • IP in UDP/RTP/RTSP protocol, able to output with 1*MPTS or 8*SPTS
  • Support IP empty packet filtering capability
  • Cut-off memory capability
  • Management of support web browser via NMS operation
  • Support software upgrading by NMS





APPLICATIONS

IPTV System
Various DTV Broadcasting Systems
Home Entertainment
HDTV Distribution
Campus TV and Live Sports
Hotel and Hospital TV
Lobby and Rest Room
Museum, Theater and Cinema, Gymnasium
Mall Info and Corporate TV
Industrial Monitoring and HD Surveillance
Apartment, Private House
Restaurant, Yacht, Club and Resort
Airport, Railway Station
Highway and Railway Mobile Device
Public Broadcasting
Advertisement in Square and so on

SPECIFICATIONS

ENCODING
MPEG-2/H.264 SD Encoding
Video input: 8*CVBS
Video compression standard: MPEG-2, H.264/MPEG-4 AVC SD
Video resolution: PAL - 720*576i;
NTSC - 720*480i
Video bit rate: 0.5~15 Mpbs for H.264 compression
1~15Mpbs for MPEG-2 compression
Audio input: analog L/R
Audio compression standard: MPEG-1 Layer II; LC-AAC
Audio sample rate: 48KHz
Audio bit rate: 64~384 Kbps for MPEG-1 Layer II;
32~384kbps for HE-AAC, LC-AAC

INPUTS AND OUTPUTS
ASI Input
Channel: 1*ASI
Interface: BNC, 75 ohm
Input bit-rate: ≤100Mb/s
Packet mode: Byte mode
Packet length: 188/204 Bytes
ASI Output
Channel: 1*ASI+1*ASI backup
Standard: compliant with EN 50083-9 ASI
Output loss: >10dB
Interface: BNC, 75 ohm
IP Output
TS over IP out, UDP/RTP/RTSP protocol
Channel: 1*MPTS or 8*SPTS
Mode: unicast or multicast
Support empty packet filtering
Interface: RJ45 (10/100M)

MODULATION MODULES(optional)
DVB-T Modulation
Channel: 1*DVB-T frequency or 2*DVB-T adjacent frequencies
Modulation standard: EN300 744, EN304 744
Bandwidth: 6M, 7M, 8M
Constellation: QPSK, 16QAM, 64QAM
FFT mode: 2K, 8K
Guard interval: 1/4, 1/8, 1/16, 1/32
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
MER: ≥42dB
RF output frequency range: 30~960MHz, in 1KHz steps
RF output level: -30~-10dBm (77~97dbµV), in 0.1dB steps
ACLR: 55dB

DVB-C Modulation
Channel: 1*DVB-C frequency
Modulation standard: J.83A(Europe), J.83B(North America), J.83C(Japan)
Constellation: J.83A-6/32/64/128/256QAM; J.83B-64/256QAM; J.83C-64/256QAM
RF output level: -30~0dbm (77~107dbµV), in 0.1dB steps
MER: ≥40dB
RF output frequency range: 30 ~ 950MHz, in 1KHz steps
Symbol rate: 2.5~4.66Msps, 5.0~8.0Msps
Bandwidth: J.83A - 8M, J.83B - 6M, J.83C - 6M


GENERAL OPTION

Management
Connector: 1*RJ-45, 10/100 Base-T interface;
LCD front panel and web browser via Ethernet interface
Physical and Power
Power Supply: AC 90~260V 50/60Hz
Consumption 25W
Operational temperature: 0~50°C
Storage temperature: -10~70°C
Humidity: 10%-90%
Dimension: 430mm(W)×460mm(D)×45mm(H)
Weight: 4.5kg

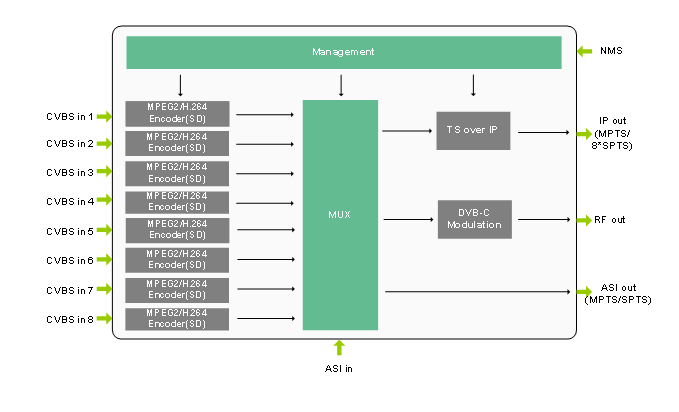

DIAGRAM
