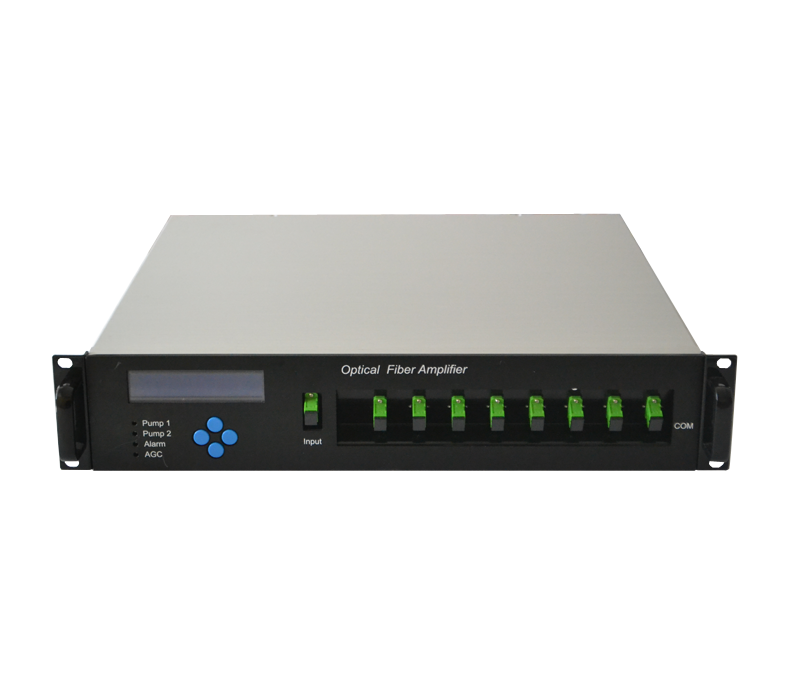

8 Port EDFA

What is EDFA? When optical transmitting over long distance, the optical signal has to be amplified many times because of the signal loss from fiber attenuation, connectivity losses, fiber splicing losses, etc. Before optical amplifier is invented, the optical signal has to be first converted into electrical signal, amplified, and...
-
+
$0.00

EDFA

2 In Stock

What is EDFA?

When optical transmitting over long distance, the optical signal has to be amplified many times because of the signal loss from fiber attenuation, connectivity losses, fiber splicing losses, etc. Before optical amplifier is invented, the optical signal has to be first converted into electrical signal, amplified, and then converted back to optical signal again. The process is very complicated and expensive. EDFA Optical amplifier can amplify signals directly, this process is significantly cheaper and started a fiber optic revolution. EDFA, or Erbium-doped Fiber Amplifier, uses the Erbium-doped fiber as optical amplification medium to directly enhance the signals. The amplifying medium is a glass optical fiber doped with erbium ions. The erbium-doped fiber gain medium amplifies light at wavelengths that are in the neighborhood of 1550 nm—the optical wavelengths that suffer minimum attenuation in optical fibers. EDFA works best in the range 1530 to 1565 nm, and it possesses low noise and can amplify many wavelengths simultaneously, making it the fiber amplifier of choice for most applications in optical communications.



Feature

◆High Power:Up to 2W total,1 Unit for 2000~4000 optical node

◆Low Noise Figure:Below 5.5dB ( +5dBm input)

◆Er Yb co-doped DCF Amplify Technology:Patent Pump Dump Technology

◆Low CSO: <-70dBc

◆23dBm×N,20dBm×N or 17dBm×N output is optional

◆Controllability and maneuverability: Dual CPU to deal Control loop and     Communication separately

◆High Stability And Reliability:MTTF>150000 Hours

◆Redundancy Hot Swap power module: 110/220VAC and 48VDC can plug Mix

◆Perfect Network Interface:Ethernet

◆Intelligent Temperature Control System: using a dedicated Temperature control chip which make cooling and power loss reduce 30% than competitors

◆Integrated 1310nm,1490nm,1550nm WDM (Optional)

OEM, Module is available



Application

◆Analog CATV Transmission

◆FTTH Optical Access

◆Optical Distribution

◆Free Space Optical

◆R&D and Training
