Capture Live Streaming video capture card with audio 1080P Dual HD video capture card live streaming

OVERVIEW Dual HDMI video capture is a Full HD video and audio high-performance record /playback through USB-C and PGM output, capturing dual HDMI input and one-way analog audio input. It has a built-in audio mixer function, allowing users to toggle between different audio settings and three audio inputs. Based on...
-
+
$199.00

Video Converter

100 In Stock

OVERVIEW

Dual HDMI video capture is a Full HD video and audio high-performance record /playback through USB-C and PGM output, capturing dual HDMI input and one-way analog audio input. It has a built-in audio mixer function, allowing users to toggle between different audio settings and three audio inputs. Based on UVC (Universal Video Class) standard, the device features a laptop/mobile phone or live broadcast software fast connection with the system-supplied driver. Moreover, its lightweight design and intuitive.

FEATURES

1. Based on UVC Standard, the device allows to connect laptop/mobile phone and output Full HD video with a high performance of recording and live streaming through USB-C.
2.Two HDMI input for capturing High-Definition video at 1080P/60fps.
3. One HDMI output(PGM) for streaming high-definition video at 1080P/60fps.
4. It features a flexible audio connection via dual HDMI or analog 3.5 mm ports so that you can directly choose any one to switch.
5. Easily switch between 6 different screen modes configurations and adjust transition effects with the built-in buttons.
6. Do not need an additional power supply. Regular working will be available only by the host power.
7. A separate USB Type-C 18W port can be used to quick-charging a mobile phone (partially reverse charging).
8. It can be fixed on the bracket through a 1/4 "hot hole for better live streaming.
9. The device has a memory feature of the previous picture mode.

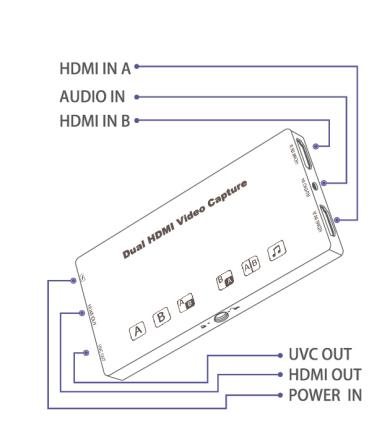

HDMI IN A

HD video input interface suppots cameras, SLR cameras, conference cameras ,PC and other signalsources.

AUDIO IN

Analog audio input canbe connected to the mixer, PC/ive, sound card, and other audio sources.

HDMI IN B

HD Video input interface suppots cameras, SLR cameras, conference Cameras, PC and other signal sources.

UVC OUT

UVC intertace connected to moble phones or PC can switch image data freely.

HDMI OUT

HDvideo output interface can be connected to a large-screen TV, professional broadcast statins, and other equipment.

POWER IN

The reverse charging port of the mobile phone connected to the charger or power bank can charge the mobile phone in reverse.

SPECIFICATION

Input

  • Videoinput: Support interlaced and progressive resolution, support HDMI 1.4 640x480@60, 800*600@60, 1024*768@60, 1152*864@60, 1280*720@60, 1280*800@60, 1280*960@60, 1280*1024@60, 1440*900@60, 1600*900@60, 1680x1050@60, 1920x1080@60
  • Audio Input: Dual HDMI or5 mm Mic in, any one to choose

Output

  • HDMI Out: Full HD output, 1920*1080@60HZ
  • Video Output : 5 1080P@30HZ
  • Audio Output : 0

System

  • PC: Windows, Mac OS
  • Mobile Phone: Android

USB Ports

  • USB: 1 *USB-C (host), 1 *USB-C (power) 18W

GENERAL OPTIONS

Physical and Power

  • Package Size: 100*160*40mm(WwL*H)
  • Product Size: 63*126*11mm (W*L*T)
  • Weight: Net Weight: 124g, Packed Weight: 400g
  • Operating Temperature: -20-50C(working), -20-80 C (storage)
  • Power: 3W
  • Power Supply: PC supply, support quick charge for mobile phone

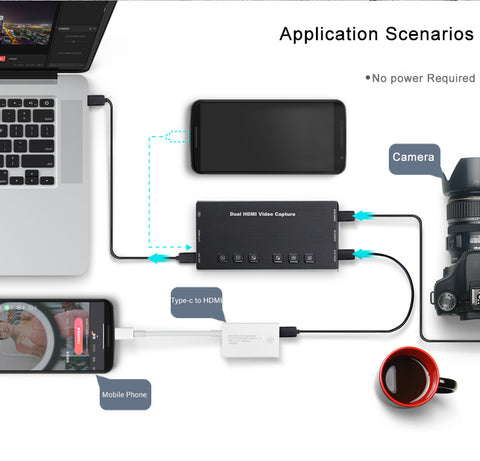

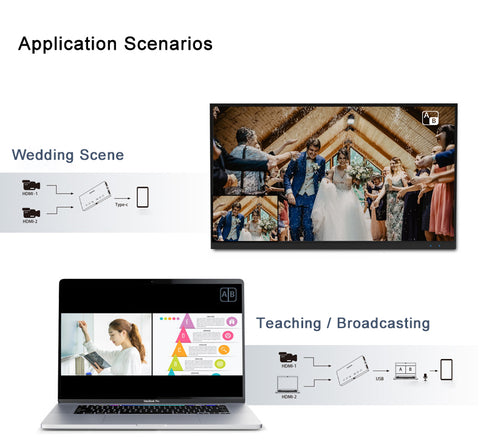

 APPLICATION
