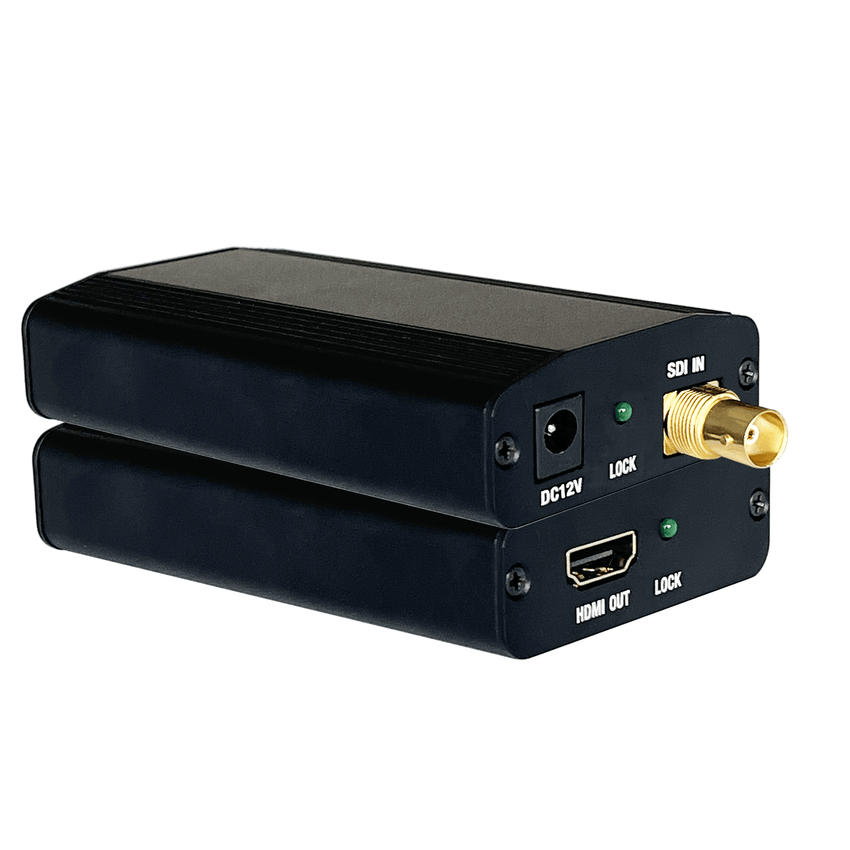

DIGICAST 12G SDI to HDMI Converter 4K@60 FPS 12G 3G SDI to HDMI 4K Converter
Overview
DIGICAST 12G-SDI to HDMI Converter. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with a HDMI monitor, which will select the best format it can support. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.
FEATURES
1 x 12G-SDI SD/HD/2K/4K auto switching.
HDMI Video Outputs:1 x HDMI 2.0 type A connector with support for 2160p60.
APPLICATION
SPECIFICATION
SDI Input
12G-SDI:2160P50,2160P60,2160P50 DCI,2160P60 DCI
6G-SDI:2160P24,2160P25,2160P30,2160P24 DCI,2160P25 DCI,2160P30 DCI
3G-SDI:1080P24,1080P30,1080P50,1080P60
HD-SDI:720P25,720P30,720P50,720P60,1080I50,1080I60
SDI Compliance: SMPTE 259M-C, ST292-1, ST424, ST2081-1, and ST2082-1.
HDMI output
Resolution : 2160P50,2160P60,2160P50 DCI,2160P60 DCI
2160P24,2160P25,2160P30,2160P24 DCI,2160P25 DCI,2160P30 DCI
1080P24,1080P30,1080P50,1080P60
720P25,720P30,720P50,720P60,1080I50,1080I60
GENERAL OPTION
Physical And Power
- Voltage:12V/DC,1A
- Consumption: 6 W
- Operating temperature: 0~90℃(operation), -20~60℃(storage)
- Dimensions: 120mm(W)*60mm(D)*23mm(H)
- Net Weight: 0.117KG
