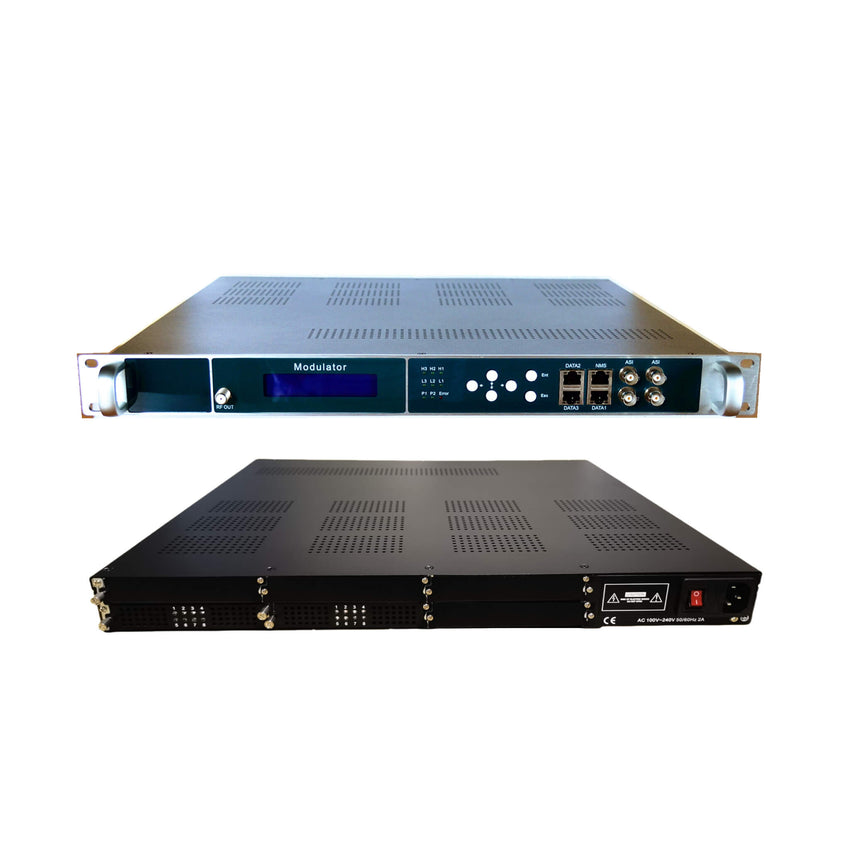

DMB-6100 1U high cost effective IP to 16 32 48 Analog RF Modulator
Overview
DMB-6100 is a 16~48 in 1 analog modulator is the latest professional TV front-end equipment developed by our company for processing audio and video. The device is used for IP/ASI program input and then output via an analog modulated signal.supports 2 GE ports inputs (Each port provides a maximum of 128 address inputs).The analog modulation mechanism adopts modular design and pluggable structure.According to customer requirements, customers can flexibly choose 16/24/32/40/48 carrier output, with RF output frequencies ranging from 43.25 to 951.25MHz. In addition, the device provides 1 GE port output (5 MPTS output) and 4 ASI ports.The device has excellent performance and flexible configuration,using 1U chassis, easy to install and use.A single device integrates a complete set of front-end system functions, which is very suitable for use in hotels, clubs, hospitals, bathrooms and other TV broadcasting systems.
Features
-
Support maximum 2*128 IP input,UDP/RTP
Support for standard PAL or NTSC or SECAM formats
Support 16/24/32/40/48 carrier outputs (optional)
Modular analog modulation channel module is adopted to facilitate equipment expansion
Support 5 MPTS output,UDP/RTP
Support 4 ASI ports (2 input and 2 output)
Support web-based network management and online upgrade functions
Using 1U chassis, a single device integrates a set of front-end device functions, saving installation and wiring space
Specification
|
2 GE ports input (Each port supports 128 IP addresses input) |
||
|
2 ASI input |
||
|
Output |
16/24/32/40/48 carrier output（optional） |
|
|
1 GE output,5 MPTS output |
||
|
2 ASI output |
||
|
Data protocol |
protocol |
UDP/RTP, SPTS, MPTS |
|
Transport protocol |
TS over UDP/RTP，Unicast/multicast，IGMP V2/V3 |
|
|
Packet length |
188/204 Bytes |
|
|
Decoding |
Video |
HEVC/H. 265,H.264/AVC Level 4.1 HP, MPEG-2 MP@HL |
|
Audio |
MPEG-1/2 Layer 1/2, AAC |
|
|
Resolution |
HEVC/H.265: 1080@60P,1080@60I,1080@50P, 1080@50I,720@60P, 720@50P; H.264/AVC: 1080@60I, 1080@50P, 1080@50I,1080@30P, 1080@25P, 720@60P, 720@50P, 576@50I, 480@60I: MPEG2: 1080@60I,1080@50I,720@60P, 720@50P,576@50I, 480@60I; |
|
|
Display ratio |
4:3/16:9 |
|
|
Modulation |
Carrier channel |
16/24/32 |
|
Impedance |
75Ω,F connector |
|
|
Frequency range |
43.25~951.25MHz |
|
|
Output bandwidth |
400MHz |
|
|
Output level |
-35 ~-5dBm |
|
|
Television standard |
PAL,D/K/B/G/I;NTSC,NTSC 4.43;SECAM,D/K/B/G |
|
|
SNR |
≥50dB |
|
|
Miscellaneous |
Size(L×W×H) |
482mm×410mm×44mm |
|
Temperature |
0~45℃(Operation)；-20~80℃(Storage) |
|
|
Voltage range |
AC100~240V，50/60Hz |
|
