DMB-8808S Pro 8*CVBS(AV) H.264 Classic Provideo Streaming Encoder

DMB-8808S Pro 8*CVBS(AV) H.264 Classic Provideo Streaming Encoder

$599.00
OVERVIEW DMB-8808S Pro Classic Provideo Streaming Encoder has 8*CVBS (AV) input working at the same time. Meanwhile, it outputs 16 groups stream by TS over IP transmission in H.264 Compression (Video), AAC, MP3 Compression (audio) with different resolutions, bit-rates and protocols for delivering services to multiple Internet connected devices at the same time, including smart-phones, tablets,...
-
+

DIGICAST

Multi-channel Encoder--1U'' integrated Web Management Port

2 In Stock

Add to wishlist

OVERVIEW

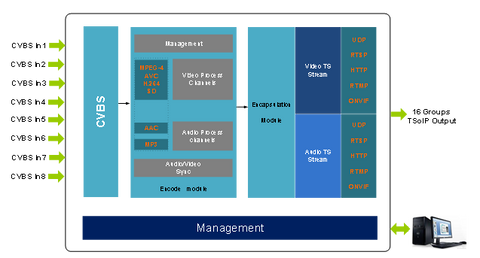

DMB-8808S Pro Classic Provideo Streaming Encoder has 8*CVBS (AV) input working at the same time. Meanwhile, it outputs 16 groups stream by TS over IP transmission in H.264 Compression (Video), AAC, MP3 Compression (audio) with different resolutions, bit-rates and protocols for delivering services to multiple Internet connected devices at the same time, including smart-phones, tablets, different size TVs and other mobile device. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth. It can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.

FEATURES

  • Support 8*CVBS input
  • Output respect ratio 16:9 and 4:3 adjustable
  • Up to 16 groups TS over IP with 16 different resolutions and 16 different bitrates
  • Offering 264 Video Compression
  • Workable underRTSP/RTP/HTTP, UDP unicast and multicast, RTMP (Username and password verification allowed under RTMP)
  • Support ONVIF Network Video Protocol
  • Configurable of multi-protocol,multi-resolution and multi-stream and low bit-rate by H.264 with high quality image
  • Anyterminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC)
  • Encoding profile: 264/AVC BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
  • Bit-rate mode: CBR/VBR, 16Kbps~12Mbps
  • Video packing: FFMPEG/ VLC
  • Transport method: TCP,UDP, 1000M (RJ45 duplex interface)
  • Web-based management easy for configuration.
  • Scrollable English OSD, picture overlapping and logos are realizable while letters and symbols can be displayed anywhere in the screen
  • Image setting: Contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering
  • Audio: line in (left&right)
  • The setting comes into effect once finished while reboot is unnecessary
  • Default configuration can be done by one key recovery
  • WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

APPLICATIONA

  • IPTV system
  • OTT system
  • Internet TV
  • Digital SignageProject
  • Remote Video Conference
  • Video Monitoring
