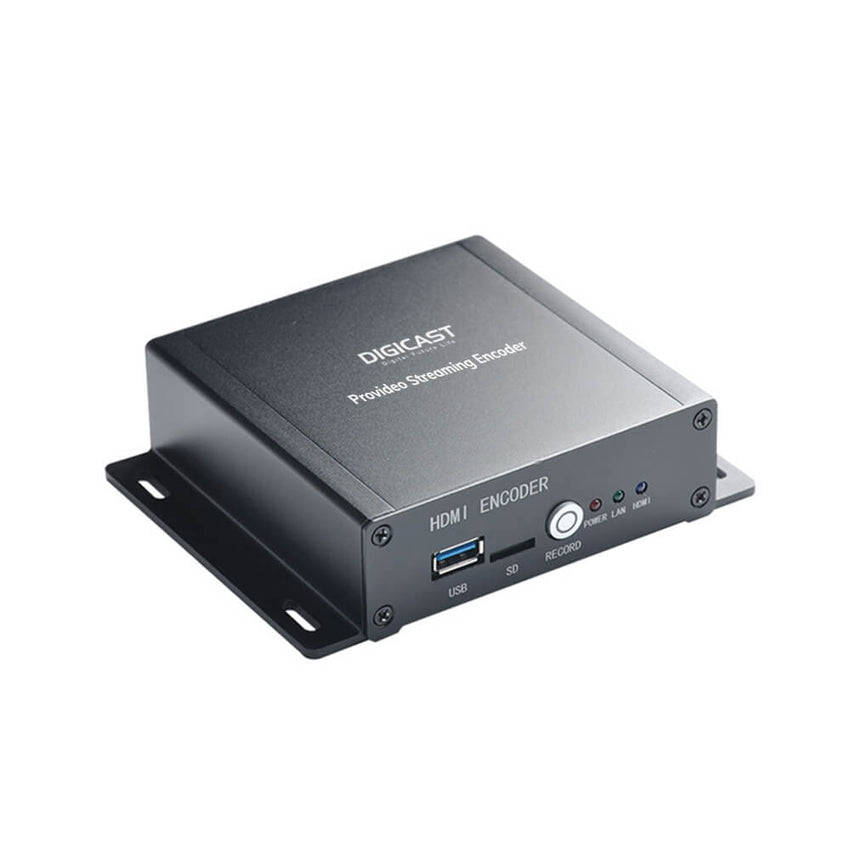

DMB-8900AU-EC 4K HEVC ProVideo Sttreaming Encoder
In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.
DMB-8900NU UHD 4K HEVC ProVideo Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/HEVC, which realizes its resolution to be up to 4K@30fps. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth. DMB-8900NU UHD accepts 1*HDMI input, then output 4 groups TS over IP in H.265 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs. This 4K Encoder has widely applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
Video Input: 1*channel HDMI in
Video resolution up to Full HD 4K@30fps
Capable of Recording locally or external storage by USB port.
Output 4 groups IP streams with different resolution, bitrate and protocol
Video compression: H.265/HEVC main profile, H.264/AVC baseline/main/high profile
Audio compression: Dolby AC3,AAC / AAC+ / AAC++ / MP3, G.711
B frame(IBBP) GOP structure
Video bitrate Control: CBR/VBR 16Kbps ~ 32Mbps
Video packaging: A mode: FFMPEG, B mode: VLC
Transmission: 100M/1000M for transmission/configuration(RJ45 Duplex network port).
Support Text/image OSD, image overlay
Support automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance
Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually
Support encoding without video signal
Take effect immediately when applied the settings, no need to restart.
Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
Switchable of audio output mode: Left, right and Stereo
Configurable of Multi-bitrate, Multi-resolution, Multi-protocol
Providing HLS, RTSP, HTTP, UDP and RTMP protocol
Compatible with ONVIF Network Video Protocol
Any IOS browsers (iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.
Large screen playback
Organizations, Conferences and Worship
Agencies, TV & Radio and Sports
Government, Education and Music
Digital Signage Project
Remote Video Conference
