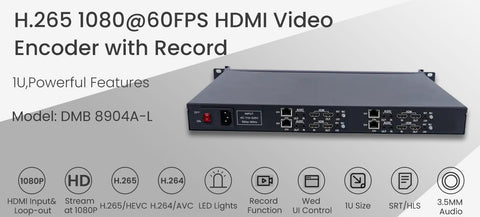

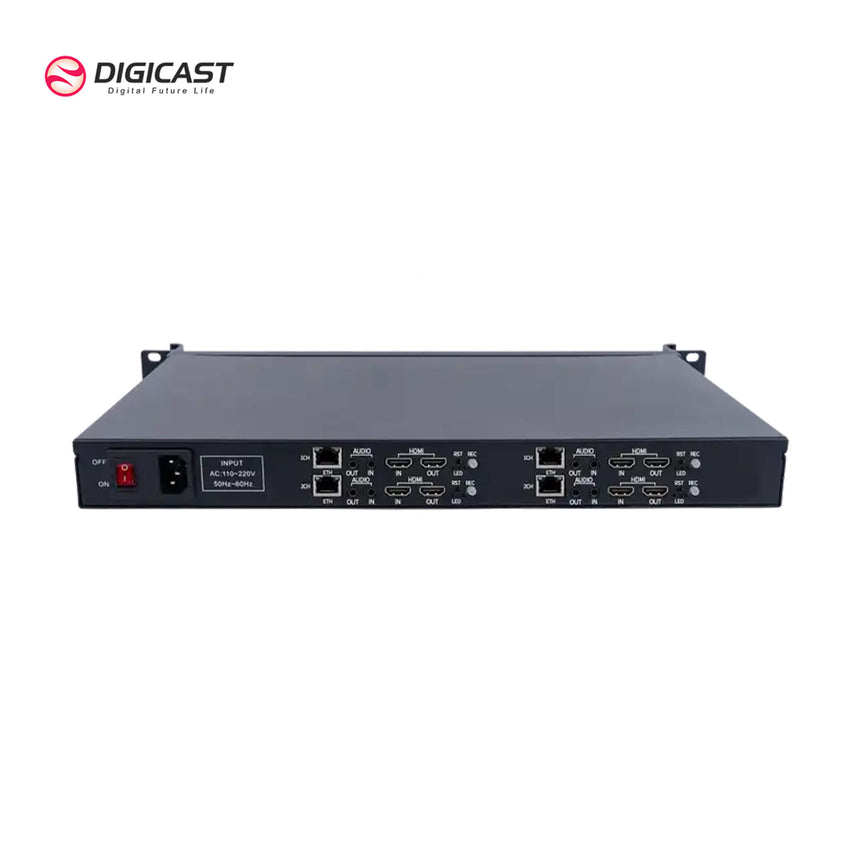

DMB 8904A-L 4 Channels IPTV Video Encoder Live Streaming Encoder RTC Function Optional
$615.00
OVERVIEWS The DMB-8904A-L HD encoder has the function of encoding four streams simultaneously. HDMI video source encoding can be compressed into a network stream, and long-distance HD transmission/live broadcast of video can be realized over the Internet or LAN through a wired network.With newest technology WebrtC (option) push streaing over...
OVERVIEWS
The DMB-8904A-L HD encoder has the function of encoding four streams simultaneously. HDMI video source encoding can be compressed into a network stream, and long-distance HD transmission/live broadcast of video can be realized over the Internet or LAN through a wired network.With newest technology WebrtC (option) push streaing over WAN,Ultra-low latency across the network ≤ 300ms viewing.
DMB-8904A-L provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
More about our encoder....
*Powerful streaming media service function, not only supports common protocols such as RTSP/RTMP, but also supports other customizable protocols such as Security Onvif, GB28181, etc.
Input: 4*HDMI with audio in,4*3.5mm independent audio Audio coding: AAC/MP3/G.711 Audio bit rate: 24Kb/s~256Kb/s Sampling Rate: 32000,44100,48000 etc.

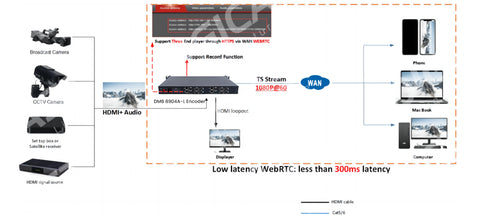

*Webrtc option(by HTTPS with ultra low latency over WAN for 3 terminals)
For LAN application, it can be used to build a small LAN distribution system,support 5-7 display terminals to pull stream from this encoder
Features
*Support HTTP/RTSP/RTMP/HLS/UDP/ONVIF/SRT streaming/RTP/unicast/multicast and other universal international media streaming protocol.
*Multi-channels different input quantity option: 1 channel (Portable),4channels (1U),16 channels(3U) option
*One video input with four streaming output synchronous,4 streaming with different protocol and resolution,bitrate, main stream up to 1080p 60FPS,sub-stream max to 720p 60FPS video encoding, output resolution can be customized.
*Good compatibility that push streaming to media servers such as Wowza/FMS/RED5 smoothly for live streaming video application
*Support RTMP add user name and password function, support RTSP add user name and password
* Support video real-*time loop-out function for monitor the input source image quality without delay * POE power supply option(Extra Cost)
* Support 4 channels 3.5mm independent audio acquisition input
* Bandwidth with strong adaptability to make sure it can transfer HD, low delay, no lag audio and video signal stable under low-bandwidth network environment
*Not only adopt embedded chip and H.265/H.264 video coding technology,but also combined with enhancement image processing technology,above three points to achieve low bit rate coding for high-definition image quality output, output resolution is adjustable.
*Wider range of code rate adjustable, adjustable from 16Kbit/s to 12Mbit/s,CBR/VBR supported
* Support DHCP to automatically obtain IP (default set is disable, some computer firewalls will block)
* The transmission mode supports TCP, UDP, 1000M (full-duplex mode)
*Support insert Chinese and English OSD,company logo, support OSD scrolling,you can set the picture overlay, X and Y position,font size freely.
*Support one-key restore, version upgrade and remote maintenance, restore default configuration
*Support no video signal encoding, the setting will take effect immediately after completion, no need to restart; support set-top box decoding
Specification
Input: 4 channel HDMI signal input
4 channel 3.5 audio input
Output: 4 channel IP signal output
4 channel HDMI signal loop out
VIDEO ENCODING
Input resolution: 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc.
Coding standard: H.264/H.265
Encoding level: Level 1,Level 2,Level 3, Level 4,Level 5 (the higher the level,the greater the volatility of the code stream)
Encoding level: H.264 BASELINE PROFILE/H.264 MAIN PROFILE/H.264 HIGH PROFILE/H.265 MAIN PROFILE
Output: 4 channel IP signal output
4 channel HDMI signal loop out
VIDEO ENCODING
Input resolution: 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc.
Coding standard: H.264/H.265
Encoding level: Level 1,Level 2,Level 3, Level 4,Level 5 (the higher the level,the greater the volatility of the code stream)
Encoding level: H.264 BASELINE PROFILE/H.264 MAIN PROFILE/H.264 HIGH PROFILE/H.265 MAIN PROFILE
Output
resolution:1920*1080,1280*720,960*540,850*480,720*576,720*480,640*480,640*320,320*180
Video bit rate: CBR/VBR bit rate control,16KBIT/S~12MBIT/S
Video frame rate: 30/60fps
OSD:Word,Picture
resolution:1920*1080,1280*720,960*540,850*480,720*576,720*480,640*480,640*320,320*180
Video bit rate: CBR/VBR bit rate control,16KBIT/S~12MBIT/S
Video frame rate: 30/60fps
OSD:Word,Picture
AUDIO:
IP Streaming output Stream Output 4*RJ 100M/1000M adaptive Ethernet port,TS standard stream,four-streams, ONVIF protocol
System Network protocol: Support HTTP,RTSP,RTMP(S),UDP,Multicast,Unicast,SRT,Onvif,HLS
Configuration management:Support WEB configuration
Physical and Power
Power Supply:12V~2A
Working humidity: <90%,no condensation
Power consumption: ＜5W
Operating temperature: -20℃+ 60℃
Dimensions: 440mm x 300mm x 43mm(L*W*H) Weight: 3.5kg/pc
