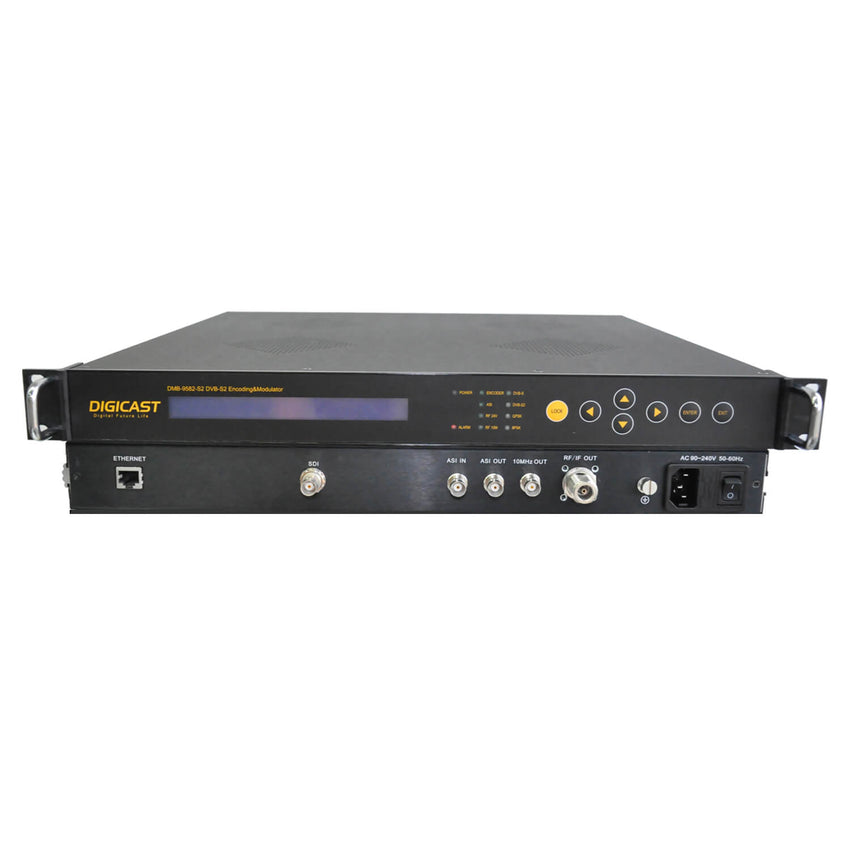

DVB-S2 MPEG-2/H.264 HD Encoding&Modulator

DMB-9582-S2 Encoding & Modulator is a high-integration, high video quality, high-stability and multi-function digital TV head-end device, encoding module support hot-swappable design. Adopting the state-of-the-art Audio & Video compression technology, it features higher video quality, shorter latency and lower bit rate. There are varieties of encoding modules for your option....
-
+
$3,200.00

MPEG-2/H.264 HD Encoding & Modulator

2 In Stock

DMB-9582-S2 Encoding & Modulator is a high-integration, high video quality, high-stability and multi-function digital TV head-end device, encoding module support hot-swappable design. Adopting the state-of-the-art Audio & Video compression technology, it features higher video quality, shorter latency and lower bit rate. There are varieties of encoding modules for your option. Moreover, index parameter of DVB S/S2 RF out is excellent, enabling its application to professional satellite uplink. DMB-9582-S2 has one ASI output, which can be used as other modulator’s program source. Additionally, the device can also serve as independent encoder and independent modulator. The Encoding & Modulator supports program sources from video and surveillance control camera or HD STB, HD camera or play out server, PC and other diversified video source.

FEATURES

  • Comply to DVB-S/S2 modulation standard
  • MPEG-2/H.264 SD/HD video compression
  • Encoding module support swappable
  • Audio encoding: support MPEG-1 Layer 2, LC-AAC, HE-AAC
  • Capable of PID, PSI/SI compilation and LCN setting
  • Providing BISS scrambling
  • Cut-off memory function
  • HTTP WEB network management
  • Support software upgraded by Ethernet interface, easy maintenance
  • Support 10MHz reference clock



APPLICATIONS



SPECIFICATIONS

ENCODING MODULES
MPEG-2/H.264 HD Encoding Module
Video input: 1*SDI (other interfaces need to be customized)
Video compression standard: MPEG-2/H.264 SD/HD
Resolution: 1920*1080_60P, 1920*1080_50P--(only for H.264 HD)
1920*1080_60i, 1920*1080_50i, 1280*720_60P, 1280*720 _50P,
720*480_60i, 720*576_50i
Audio input: SDI embedded
Audio compression: MPEG1 Layer II(default), (LC-AAC, HE-AAC(Optional))
Audio sampling rate: 48KHz
Audio bit-rate: 64 ~ 320kbps

INPUTS AND OUTPUTS
ASI Input
Channel: 1*ASI
Interface: BNC, 75 ohm
Input bit-rate: ≤100Mb/s
Packet mode: Byte mode
Packet length: 188/204 Bytes

ASI Output
1*ASI output
Standard: compliant with EN 50083-9 ASI
Output loss: >10dB
Interface: BNC, 75 ohm
TS output: from encoded program or ASI input

MODULATION MODULE
DVB-S/S2 Modulation
Compliant to DVB-S2 EN302 307, EN300 421 standard
DVB-S/S2 RF output range: 950MHz~2150MHz(IF:50MHz~200MHz optional)
Constellation: DVB-S---QPSK, DVB-S2---QPSK, 8PSK
FEC Encoding pattern: DVB-S-RS+convolutional code; DVB-S2-BCH+LDPC
FEC encoding efficiency: DVB-S: 1/2, 2/3,3/4,5/6,7/8;
DVB-S2: QPSK-1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10;
8PSK-3/5, 2/3, 3/4, 5/6, 8/9, 9/10
Symbol rate: 0.05-20.0 Msps
Roll-off: 0.2, 0.25, 0.35
Output level: -10~-41.5dBm
Equipped with RF 24V coupling output

GENERAL OPTION
Management
Connector: 1*RJ-45, 10/100 Base-T interface.
Remote control: HTTP web network management
Local control: front panel keyboard button and LCD control

Physical and Power
Power Supply: 90~260VAC, 50/60Hz
Consumption: 25W
Operational temperature: 0~50°C
Dimensions: (1RU,19inch),420mm(W)×300(D)mm×45mm(H)
Weight: 4kg

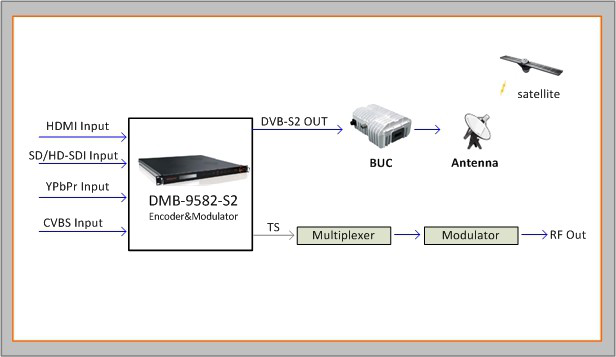

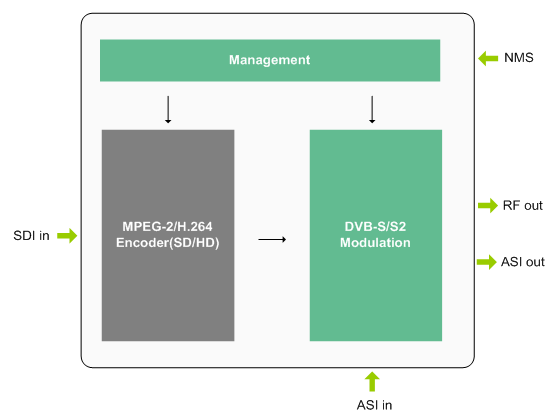

DIAGRAM
