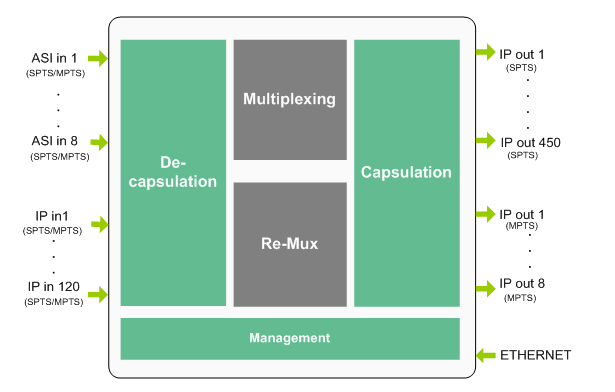

DMB-9160B ASI to IP Multiplexer is a professional TS processor and new generation IP Multiplexer used in digital TV broadcasting and IPTV head-end system. It receives 120*IP(MPTS/SPTS)+8*ASI IN channels and multiplex & de-multiplex the input programs into 450*IP STSP+8*IP MPTS OUT. For easy management, it can be controlled and upgraded via web server in addition to front panel keyboard. Its high integration and cost effective design have made it widely used in the CATV Broadcasting system, edge side of Digital TV backbone network, Head-end system of Digital TV branch network etc.



FEATURES

• Fully complying with ISO13818 and EN300 468 standard
• 120*IP(MPTS/SPTS)+8*ASI IN for remux
• 120*IP (SPTS/MPTS) input over RTP/UDP
• 8 independent ASI input
• MAX. input bitrate of IP is 800Mbps.
• Support UDP, RTP, ARP, ICMP, IGMP protocol etc.
• Up to 120 re-multiplexing channels.
• Auto-generation of Network information.
• Support accurate PCR adjusting
• Support PID pass-through, re-mapping, filtering.
• Support PSI/SI rebuilding and editing and auto-generation.
• Huge buffer memory for saving the overflowing code stream
• LCD/keyboard, Web-based and SNMP management, remote upgrading.
• Power off memory, saving the settings for auto-loading after reboot.
• Import & export the settings, easy to be configurable



APPLICATIONS

Digital TV Broadcasting System
Digital TV Programs Transmission
Hotel TV System
Head-end system of Digital TV branch network
CATV Broadcasting system
Edge side of Digital TV backbone network



SPECIFICATIONS

Transport Stream Input
1*IP (RJ45,GigE)
120 x MPTS/SPTS, Unitcast/Multicast, RTP/UDP, ARP, ICMP, IGMP Protocol.
8*ASI input, BNC connector
8 x MPTS/SPTS, Unitcast/Multicast, RTP/UDP, ARP, ICMP, IGMP Protocol.
Re-multiplex
PID re-mapping (auto or manually available)
PCR accurate adjusting
Automatic generating PSI/SI table
PID pass-through
Transport Stream Output
450*IP STSP+8*IP MPTS OUT (RJ45,GigE)

GENERAL OPTIONS
Physical And Power
Voltage: 110VAC±10%，50/60Hz; 220VAC±10%，50/60Hz
Consumption: less than 25W
Operating temperature: 0~45℃(operation), -20~80℃(storage)
Dimensions: 482mm(W)*410mm(D)*44mm(H)
Weight: 4.0Kg/pc
