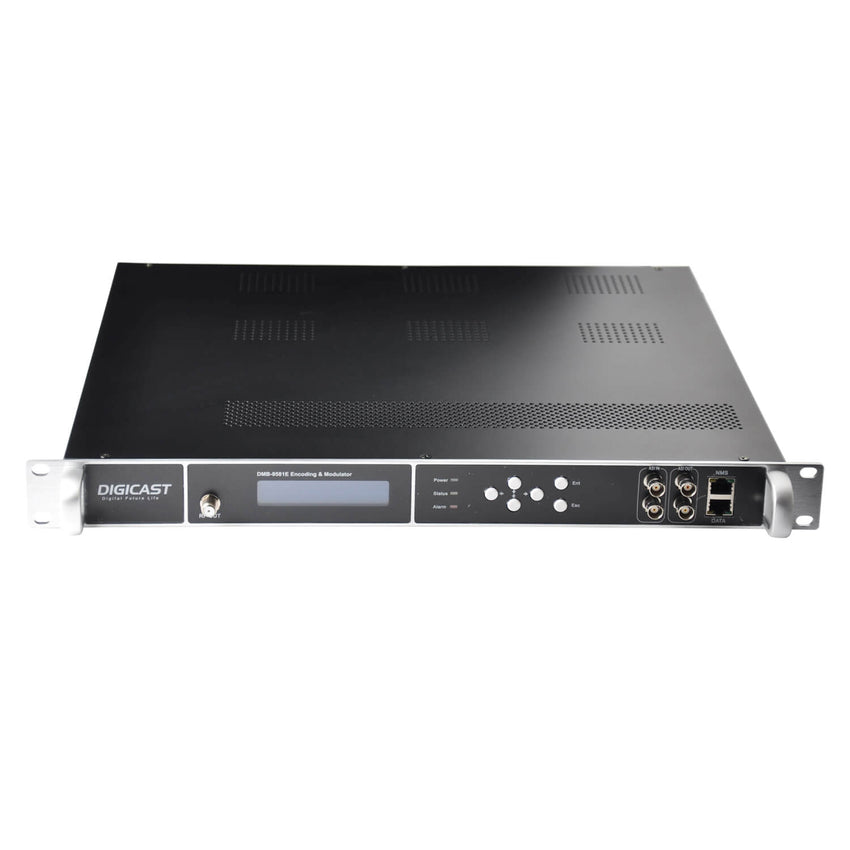

Multi-channel HD H.264 Encoder Modulator

OVERVIEW Convertes your HDMI to Digital RF to TVs 1: Plug-in-Play HDMI Video Distribution system, drives to unlimited TVs directly 2: Max 24 simultaneous hdmi over the existing tv coaxial 3: 4/8 separate multiplexing and Up-converter modulating carrier out 4: Support IP input and output for internet besides coaxial 5:...
-
+
$3,190.00

MPEG-2/H.264 HD Encoding & Modulator

2 In Stock

OVERVIEW

Convertes your HDMI to Digital RF to TVs

1: Plug-in-Play HDMI Video Distribution system, drives to unlimited TVs directly 2: Max 24 simultaneous hdmi over the existing tv coaxial 3: 4/8 separate multiplexing and Up-converter modulating carrier out 4: Support IP input and output for internet besides coaxial 5: PSI & LCN full control to edit Programs Names, PIDs, Channel Numbers


Flexible inside boards combination for Various System

1: Input FTA tuners,IP, HDMI,ASI option, you can chose one or some of them as input 2: Output RF(frequency),IP,ASI,Tuners option, you can chose one or some of them as output 3: Fully customized for your system


FEATURE

Support modulation modules DVB-T, DVB-C, ATSC-T, DVB-S, ISDB-T/Tb and DTMB switchable from web
Support  H.264 HD video encoding

Audio encoding: MPEG-1 Layer 2, LC-AAC, HE-AAC
Support PID, PSI/SI compilation and LCN setting
Equipped with multiplexing module, able to multiplex local programs with external TS
Support TS over IP out, applied to IPTV applications.
Support IP empty packet filtering capability
Cut-off memory capability
Management of support web browser via Ethernet interface
Support software upgrading by Ethernet interface



SPECIFICATION

H.265 HEVC  HD Encoding Module
Video input: 8/12/16/20/24 HD MI
Video compression standard: MPEG-2, H.265 HEVC  HD video encoding
Resolution input : 1920×1080@60P, 1920×1080@60i,
1920×1080@50P, 1920×1080@50i,1280×720@60P, 1280×720@50P
720×576@50i,720×480@60i
output:  1920×1080@30P, 1920×1080@25P,1280×720@30P, 1280×720@25P,
720×576@25P,720×480@30P
Audio input: HD MI
Audio compression standard:
MPEG1 Layer II(default),(LC-AAC, HE-AAC optional)
Audio sampling rate: 48KHz
Audio bit-rate: 64 ~ 320kbps
ASI Input
Channel: 2*ASI
Interface: BNC, 75 ohm
Input bit-rate: ≤100Mb/s
Packet mode: Byte mode
Packet length: 188/204 Bytes
ASI output
Channel: 2*ASI(Independent)
Standard: compliant with EN 50083-9 ASI
Output loss: >10dB
Interface: BNC, 75 ohm
IP Output
TS over IP Outputs: 8*SPTS over IP(UDP/RTP/RTSP)
Support empty packet filtering
Interface: RJ45 (10/100M)
Output MODULATION MODULES (optional)
DVB-T Modulation
Channel: 4*DVB-T frequency
Modulation standard: EN300 744, EN304 744
Bandwidth: 6M, 7M, 8M
Constellation: QPSK, 16QAM, 64QAM
FET mode: 2K, 8K
Guard interval: 1/4, 1/8, 1/16, 1/32
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
MER: ≥42dB
RF output frequency range: 30~960MHz, in 1KHz steps
RF output level: -30~10dBm (81~97dbµV), in 0.1dB steps
ACLR: 55dB
DVB-C Modulation
Channel: 4*DVB-C adjacent frequencies
Modulation standard: J.83A(Europe), J.83B(North America), J.83C(Japan)
Constellation: J.83A-6/32/64/128/256QAM; J.83B-64/256QAM; J.83C-64/256QAM
RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps
MER: ≥40dB
RF output frequency range: 30 ~ 960MHz, in 1KHz steps
Symbol rate: J.83A-5 ~ 7MSymbol/s, J.83B - fixed; J.83C - fixed
Out-of-band rejection: 55dB
Bandwidth: J.83A - 8M, J.83B - 6M, J.83C - 6M
ATSC-T  Modulation
Channel:  8VSB*4 adjacent frequencies
Modulation standard: ATSC A/53
Constellation: 8VSB
RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps
MER: ≥40dB
RF output frequency range: 30~960MHz, in 1KHz steps
DTMB Modulation
Channel: 4*DTMB frequency
Modulation standard: GB20600-2006
Bandwidth: 8MHz
Constellation: 4QAM, 4QAM-NR,16QAM, 32QAM, 64QAM
Qty. of modulation carriers: 1(single carrier) or 3780(multi-carriers)
Guard intervals: PN420, PN595, PN945
Internal error correction code: LDPC
Encoding efficiency: 0.4, 0.6, 0.8
Interlace depth: 240, 720
MER: ≥42dB
ACLR: 55dB
Frequency range: 110 ~ 960MHz, in 1KHz steps
RF out level: -26dBm ~ -10dBm, in 0.5dB steps
ISDB-T Modulation
Channel: 4*ISDB-T frequency
Modulation standard: ARIB STD-B31
Modulation mode: mode 1(2k), mode 2(4k), mode 3(8k)
Constellation: DQPSK, QPSK, 16QAM, 64QAM
Internal code: FEC (1/2, 2/3, 3/4, 5/6, 7/8)
External code: RS (204, 188)
Guard interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 6MHz
RF output frequency range: 30 ~ 960MHz, in 1KHz steps
MER: ≥42dB
RF output level: -26dBm ~ -10dBm, in 0.1dB steps



APPLICATION & DIAGRAM
