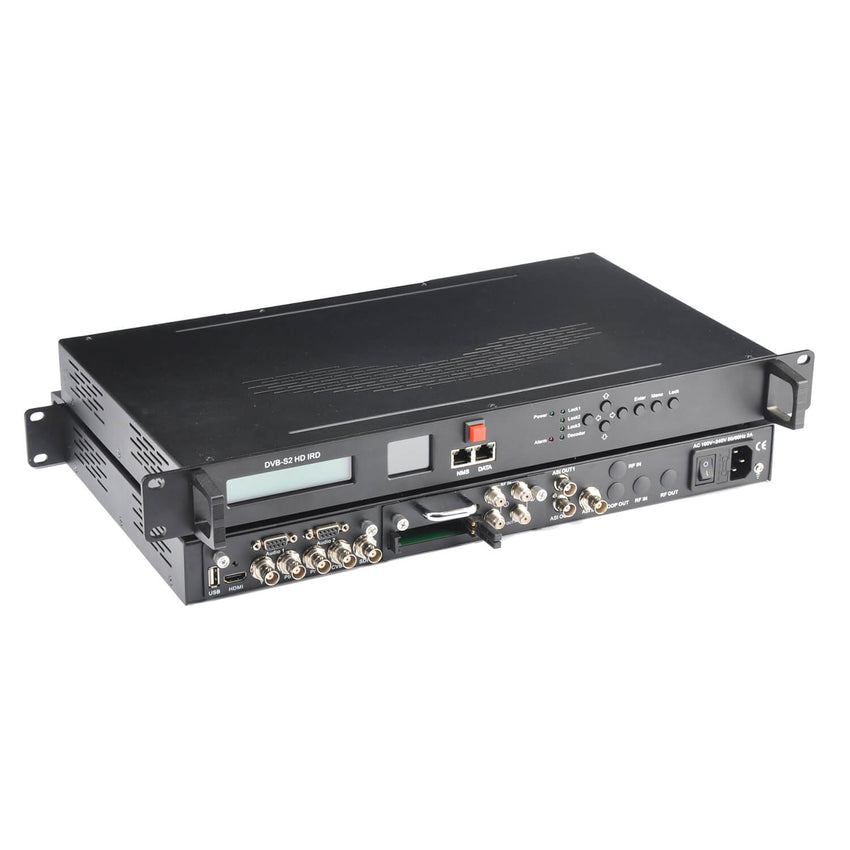

DMB-9060A Two-Channel Professional IRD is a high-density and flexible device, integrating broadcast level receiver, demodulation, decrypting and decoding function. It supports ASI,IP and various of Tuners input which can be selected respectively from DVB-S/S2, DVB-T/T2, and DVB-C with 2* Tuner independent input, and also capable of receiving lots of programs from different frequencies. DMB-9060A is designed in standard 1U Chassis, with a Hot-Pluggable modules (can support 2 channels). Meanwhile, it delivers reliable video quality program source with advanced video decoding (H.264 & MPEG-2) technology, outputs: TS*2(backup) +IP (1*MPTS or 8*SPTS with UDP/RTP/RTSP) and monitoring: 4*CVBS (Independent), 4*RCA(4*Stereo/8*mono). With its 2*DVB common interface slots and BISS decryption, capable of working with most of well-known CAS in the market to decrypt multiple TV pay services. With the compact design of 2*Tuner input and the excellent decoding ability, DMB-9060A is becoming very popular among distribution system, IPTV applications and digital TV head-end system for DTV operators, broadcast service providers and IPTV integrators etc.

Features

• Support 2*Tuner input modules selectable from DVB-T/T2, DVB-C, DVB-S/S2
• Capable of demodulation, CI & BISS decryption and decoder
• Support HD/SD MPEG-2,H.264 video decoding, Close Caption,Subtitle and Teletext
• Audio output supports MPEG 1 Layer II, LC-AAC, HE-AAC, Dolby Digital AC3

• One channel Digital Dolby 5.1 surround stereo output

•  Support multiple programs from tuner, ASI and IP decryption via the CAM card

•  Support 4*CVBS(independent) or 1*CVBS/YPbPr/HDMI/SDI output

•  Support 1+1*ASI and 1*IP(1*MPTS or 8*SPTS with UDP/RTP/RTSP) multiplexing output

•  Providing 2*LNB input and 2*LNB loop output

•  Support auto-preserving programs

•  Support NTSC and PAL modes available

•  One input can support Max.128 PID re-mapping

•  Management of support web browser via Ethernet interface

•  Support software upgrading by Ethernet interface

•  Power-off memory function

TRANSPORT STREAM INPUT

DVB-S Tuner Input

 Input Frequency Range: 950~2150MHz

 RF Input Level:-65~-25dBm

 Symbol rate: 2~45Mbaud

 Convolution encoding rates: DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-S2 Tuner Input

 Input Frequency Range: 950~2150MHz

 Symbol rate: QPSK: 1~45Mbaud

                         8PSK: 2~30Mbaud

                         16APSK 1~45 Mbaud

                         32APSK 1-32 Mbaud

 Convolution encoding rates:

DVB-S2 QPSK: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

DVB-S2 16APSK, 32APSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

 Constellation: QPSK, 8PSK, 16APSK, 32APSK

DVB-C Tuner Input

 Standard: J.83A(DVB-C), J.83B, J.83C

 Input frequency: 47~860MHz

 Constellation: 16/32/64/128/256QAM

DVB-T/T2 Tuner Input

 Connector: 2×DVB-T/T2 Tuner, F-female 75Ω

 Input frequency: 44~1002MHz

 RF Input level:-70~-20dBm

 Constellation: DVB-T: QPSK/16-QAM/64-QAM

                           DVB-T2: QPSK, 16QAM, 64QAM, 256QAM

 Bandwidth: 6MHz/7MHz/8MHz

 FFT : DVB-T: 2K/8K

            DVB-T2: 1K, 2K, 4K, 8K, 16K, 32K

Guard interval: DVB-T: 1/4, 1/8, 1/16, 1/32

                           DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128

 FEC: DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

 Reflection loss: 7dB (typ.)

IP Input

 1*IP input for re-multiplexing (UDP Protocol)

TS Processing

 1*ASI input for re-mux, BNC interface

 CI slots: 2×PCMCIA Slots, comply with most major CAMs in market

 Capable of BISS decryption

TRANSPORT STREAM OUTPUT

ASI Output

 Connector: 1+1*ASI(backup), BNC Female, 75Ω

 Standard: DVB-ASI, EN50083-9

 Output bit rate: ≤160Mb/s

IP Output

 1*MPTS or 8*SPTS with UDP, RTP, RTSP

 100Base-T Ethernet interface (Unicast/Multicast)

Video & Audio Output(for SD decoding option)

 Video Decode standard: comply with SD MPEG-2 MP@ML, H.264

 Audio Decode standard: comply with MPEG 1 Layer II

 Connector: 4*CVBS, RCA

 Video Standard: NTSC(480i), PAL(576i)

 Video bit rate: ≤50Mb/s

 Audio Output type: 8*Mono or 4*Stereo

Video & Audio Output(for HD decoding option)

 Video Decode standard: comply with HD/SD MPEG-2, H.264

 Audio Decode standard: MPEG-1 Layer II, LC-AAC, HE-AAC, Dolby Digital AC-3

 Connector: 1*CVBS or YPbPr or HDMI or SDI, BNC interface.

 Resolution: 480i, 480p, 576i, 576p, 720p, 1080i

 Audio Output type: 2*Stereo(4*Mono) or Digital 5.1 Surround Stereo, HDMI, SDI

GENERAL OPTION

Control & Monitoring

 Connector: 1×RJ45, 10/100M, for equipment IP Control

 Remote Control & upgrade: Web NMS Management, USB

 Local interface: LCD+Control buttons

Physical and Power

 Power Supply: AC100~240V 50/60Hz

 Consumption 20W

 Operational temperature: 0~45°C

 Storage temperature:-20~80°C

 Humidity: 10%-90%

 Dimension: (1RU,19inch),483mm(W)×340(D)mm×44mm(H)

 Weight: 3.0kg

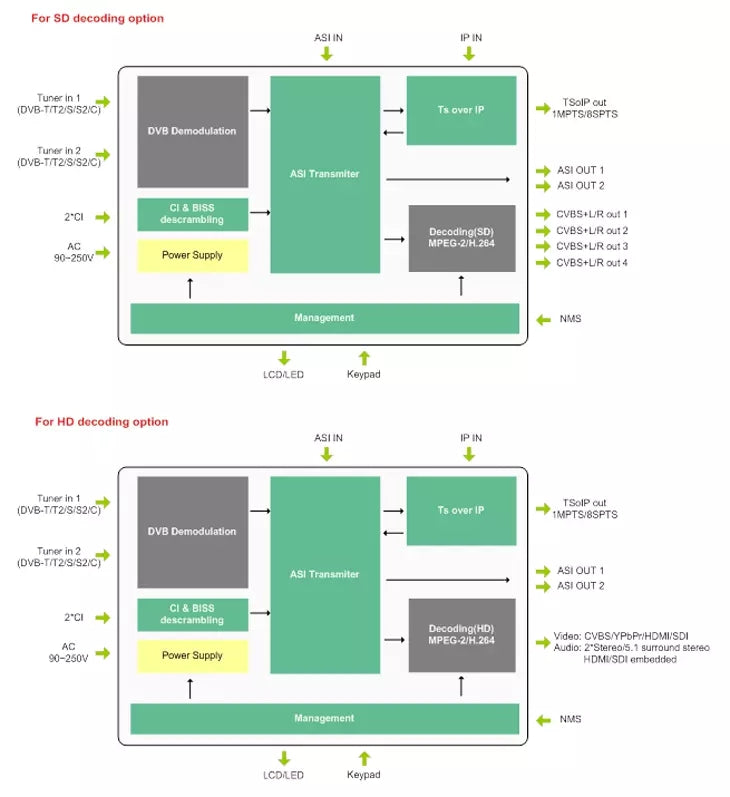

DIAGRAM
