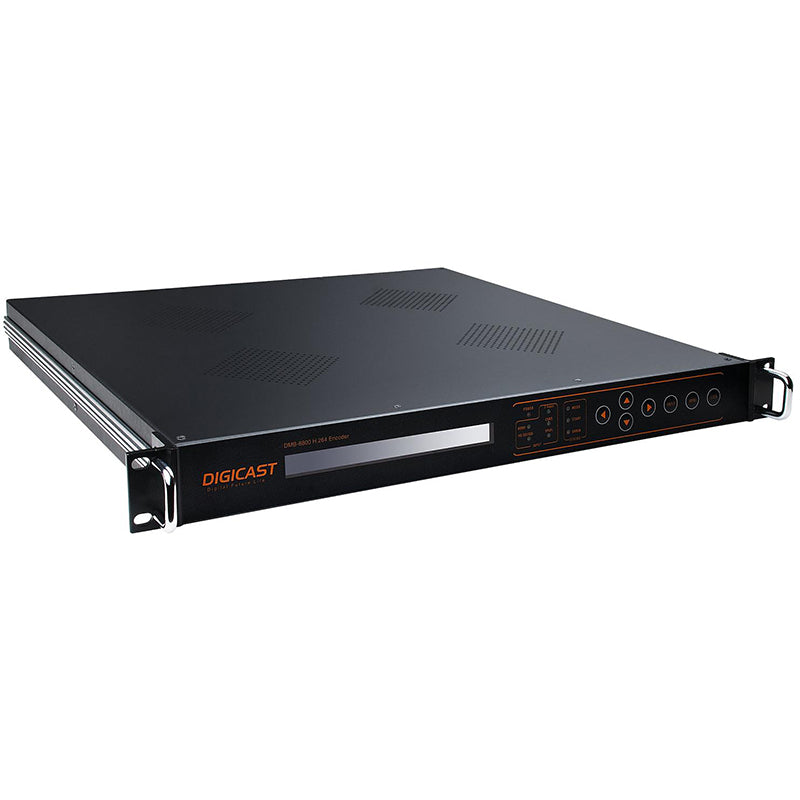

Multi-Channel Transcoder

The professional DMB-9600 Any-to-Any transcoder is designed to multiple programs transcoding, supporting not only the bidirectional transcoding within H.264-MPEG-2 formats but also down-conversion from HD programs to the SD programs with advanced transcode technology. Adopting the full-duplex GE interface, DMB-9600 enables to receive 8*TSoIP transport stream and 6*DVB-ASI or 6*Tuner...
-
+
$2,480.00

Any-to-Any Transcoder

2 In Stock

The professional DMB-9600 Any-to-Any transcoder is designed to multiple programs transcoding, supporting not only the bidirectional transcoding within H.264-MPEG-2 formats but also down-conversion from HD programs to the SD programs with advanced transcode technology. Adopting the full-duplex GE interface, DMB-9600 enables to receive 8*TSoIP transport stream and 6*DVB-ASI or 6*Tuner (DVB-C/T/ISDB-T/ATSC/DVB-S/S2 optional), it can Re-Compress each input program to meet the precious spectrum source. After professional transcoding and processing of re-multiplexing module, DMB-9600 can also output 1*MPTS or 8*SPTS through IP channel and 1*MPTS or 1*SPTS mirror transport stream of IP channel through DVB-ASI connector. Provided with unrivaled capability of transport stream re-multiplexing, DMB-9600 can control transport bit rate real-timely and efficiently in order to improve performance and optimize video quality, and also addresses the ever-increasing needs of high quality video transcoding for operators and services providers.

Features

  • Bidirectional transcoding of H.264, MPEG-2 for video
  • Bidirectional transcoding of MPEG-2 Layer-2, AAC, Dolby AC-3(option) for audio
  • Capable of Closed Caption, BISS decryption, CI slot(only for 4*Tuner in).
  • Able to transcoding max. 8*SD programs or 4*HD programs simultaneously
  • Able to transcoding max. 8-channel audio simultaneously
  • 8*IP input & 6*ASI or 6*Tuner(DVB-C/T/ISDB-T/ATSC/DVB-S/S2 optional) input
  • 8*SPTS or 1*MPTS over IP out, or 1*MPTS/SPTS through DVB-ASI out
  • GE interface (TS over IP), enabling multicast and unicast, UDP, RTP, RTSP protocol
  • IP I/O connector adopts GE/SFP interface for backup, enabling to operation more reliably
  • flexible and unrivaled capability of transport stream re-multiplexing
  • Resolution:1920*1080P, 1920*1080i, 1280*720P, 720*576i and 720*480i
  • Video I/O bit rate mode: VBR and CBR
  • Local controlled by front LCD and keyboard
  • Remote monitoring by web browser via Ethernet interface.



SPECIFICATIONS

INPUTS
IP input: 1*RJ45 GE connector, 1*SFP connector (backup for each other)
8*IP in,UDP, RTP, RTSP protocol
DVB-ASI input: 6*DVB-ASI in, 6*BNC interface
Tuner input: 6*Tuner in(FTA) and 6*loop out
4*Tuner in(with CI slot) for option
F type,(DVB-C/T/ISDB-T/ATSC/DVB-S/S2 optional)


VIDEO AND AUDIO TRANSCODING
Video transcoding
Resolution: 1920*1080P, 1920*1080i, 1280*720P, 720*576i and 720*480i
Transcoding:4*MPEG-2 HD to 4*MPEG-2/H.264 HD ;
4*MPEG-2 HD to 4*MPEG-2/H.264 SD ;
8*MPEG-2 SD to 8*MPEG-2/H.264 SD
4*H.264 HD to 4*MPEG2/H.264 HD ;
4*H.264 HD to 4*MPEG2/H.264 SD ;
8*H.264 SD to 8*MPEG2/H.264 SD
Video I/O bit rate mode: VBR and CBR
Audio transcoding
Sampling rate:48KHz
Bit rate:64Kbps ~ 384Kbps
Bidirectional Transcoding: MPEG-1 Layer2, AAC, Dolby AC-3 (optional)

OUTPUTS
IP output: 8*SPTS/1*MPTS,UDP, RTP, RTSP protocol
1*RJ45 GE interface, 1*SFP interface (backup for each other)
ASI output: :1+1*ASI backup, BNC interface.
(1*MPTS or 1*SPTS)
Bit rate of each program: 0.8~20Mbps adjustable, CBR/VBR



GENERAL OPTIONS


Controlling and monitoring
Connector:1*RJ-45,10/100 Base-T(NMS interface)
Remote management: HTTP WEB browser via Ethernet interface
Local control: by front LCD and keyboard
Software upgrade: via Ethernet interface.

Physical and power
Power:AC,90~260V,50/60Hz
Consumption:25W
Operating temperature:0~50°C
Dimensions:430mm(W)*400(L)mm*45mm(H)
Weight:4Kg

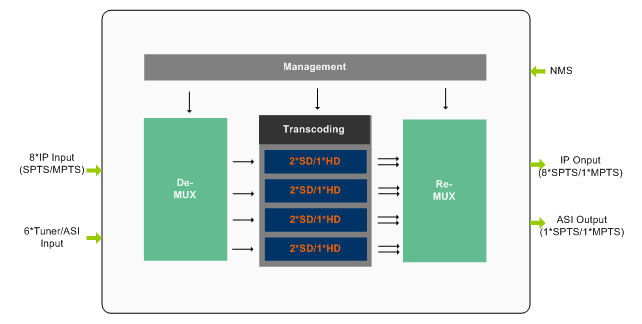

DIAGRAM
