DMB-9197 TS Mux-Scrambler features high performance and multi-functional. Integrated with multiplexing, scrambling. Saving space and cost for operators efficiently, meantime, reducing the difficulties for the construction of the system. Complete capability of multiplexing and scrambling, including the program re-multiplexing, supported PSI/SI generate and editing, etc.. Scrambling module fully complies with DVB common scrambling system description ETR289, supporting 4 different CA simulcrypt. This Mux-Scrambler input connector supports 6 channel Tuner + 2 channel ASI inputs and 8 ASI inputs (optional). Supporting 2 ASI outputs independently after multiplexing scrambling process. Additional, supporting TSoIP output(GigE), UDP protocol, Unicast and Multicast optional.



FEATURES

• Fully comply with ISO 13818 and EN 300468 standard
• Fully comply with DVB common scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197
• Supporting 6 channel Tuner+2 ASI input and 8 ASI input (optional)
• Supporting SPTS, MPTS re-multiplexing, output 2 channel TS stream independently
• Support TS input real-time monitoring
• Support multiplexing of any input channel to any output channel
• Support PCR correction
• Support 188/204 byte packet format
• Support PID filtering and remapping
• Support PSI/SI generate and editing
• Support 4 CA simulcrypt
• Support CAS remote connection and scrambling
• Support IP output(GigE), UDP protocol, Unicast and Multicast optional.
• More powerful buffer, anti-burst TS
• With warning information and alarming function
• Front panel LCD, easy to operate
• Support SNMP control, convenient to remote maintenance



SPECIFICATIONS

Transport Stream Input

Support 6 channel Tuner+2 ASI input and 8 ASI input (optional)

Comply with EN50083-9 ASI standard

ASI mode: Byte or Burst

Input packet format: 204/188 Bytes auto-adaption

ASI connector: BNC type,75ohm

Tuner connector: F type,75ohm



Transport Stream Multiplexing

Support multiplexing of any input channel to any output channel

Support manual and PID re-mapping automatically

Support input and output 64PID

Support PCR correction

support PSI/SI generate and editing



Scrambling

Support max. 4*CA simucrypt

Support local and remote connection scrambling



Transport Stream Output

Support 2+2*ASI backup output independently

Support IP output(GigE), UDP protocol, Unicast and Multicast optional.



Control and Management

Front panel

SNMP



Physical parameter
Voltage                                  90~260 VAC ±10% 50/60 Hz
Consumption                         25W
Operational temperature      0~50ºC
Storage temperature            -20~80ºC
Humidity                               10%~90%(non-condensing)
Dimensions                           400mm(D)×482(W)mm×45mm(H),(1RU)
Weight                                  5kg

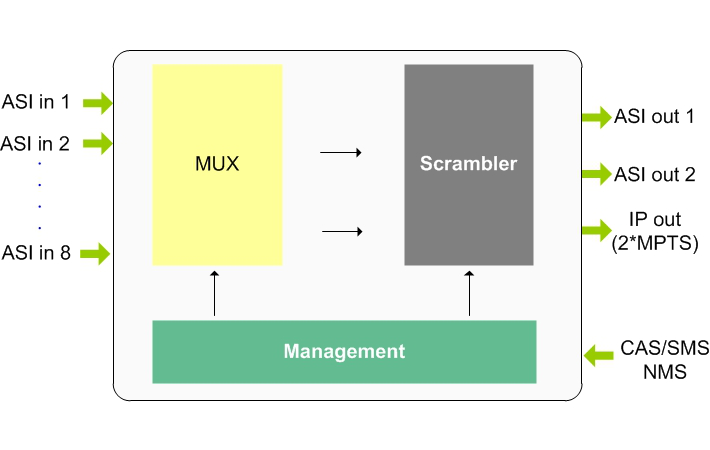

DIAGRAM
