OVERVIEW

As the development of all-IP-base for audio and video services, most of operators have been engaged in transforming and developing in IP network, for the replacement of traditional DVB network. As a result, DMB-4000 All-IP Series come to birth. This products awards with definite approval and fame from the market, due to their high commercial value and low operation cost. DMB-4000 series realizes seamless joint with IP network, and receives transport streams from main IP network. A single unit can process serial of high-integrated work of de-capsulation, re-multiplexing, DVB scrambling, DVB-T/DVB-C/ATSC modulation, etc. for IP transport streams. Device of this series is standard 1U machine installed different modules(MSC200,MSC400,MT200,MA100).

SPECIFICATIONS

DMB-4000MSC200/MSC400 IP to DVB-C Modulator
DVB-C Modulation
Data input:512×2 IP input over UDP/RTP, 2 100/1000M Ethernet Ports
Data output:16 or 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2* 100/1000M Ethernet Ports
Trans Rate: Max 840Mbps/GE Port
Standard: EN300 429/ITU-T J.83A/B (DVB-C)
MER: ≥40db
RF frequency: 50~960MHz, 1KHz step
RF output level: -20~+10dbm(87~117 dbµV), 0.1db step for all carriers
Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping
Constellation: 16/32/64/128/256QAM
RF output(F type): 16*DVB-C RF(non-adjacent carriers)--- MSC200 module
32*DVB-C RF(non-adjacent carriers)--- MSC400 module
Multiplexing
Maximum PID Remapping: 180 input per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting,  generate PSI/ SI table automatically
Scrambling
Maximum simulcrypt CA: 4
Standard:ETR289, ETSI 101 197, ETSI 103 197
Connection:Local/remote connection

DMB-4000MT200 IP to DVB-T Modulator
DVB-T Modulation
Data input: 512×2 IP input over UDP/RTP, 2*100/1000M Ethernet Ports
Data output:8 IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M Ethernet Ports
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 8*DVB-T RF(non-adjacent carriers)
Standard: ETSI EN300 744 (DVB-T)
MER: ≥40db
RF Frequency: 50~960MHz, 1KHz step
RF Output Level: -20~+10dbm (for all carriers), 0.5db stepping
Constellation: QPSK/16QAM/64QAM
Bandwidth: 6/7/8 MHz
Trans mode: 2K/4K/8K
FEC: 1/2, 2/3, 3/4, 5/6, 7/8


Multiplexing
Multiplexed output: 8 channels
Maximum PID Remapping: 180 input per channel
Features: PID remapping(automatically or manually),Accurate PCR adjusting,
generate PSI/ SI table automatically

DMB-4000MA100 IP to ATSC-T Modulator
ATSC-T Modulation
Standard: ATSC A/53
Data Input: 256*IP input over UDP/RTP(Unicast and Multicast, IGMP V2/V3),2*GigE (RJ45/SFP)
Data Output:8*IP output over UDP/RTP/RTSP, Unicast/Multicast,2*GigE (RJ45/SFP)
Transmission Rate: Max 840Mbps/GigE interface
RF Output (F type): 8*ATSC-T RF(non-adjacent carriers)
FEC: RS(208,188)+Trellis
Constellation: 8VSB
RF Output Level: -20~+10dbm (for all carriers), 0.5db stepping
MER: ≥40db
Bandwidth: 6MHz
RF Frequency: 50~960MHz, 1KHz step
Multiplexing
Multiplexed output: 8 channels
Maximum PID Remapping: 180 input per channel
Features: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically

GENERAL OPTIONS
Control
Connector:1*RJ45,10/100M
Support NMS management.
Physical parameter
Power: AC, 90~260V, 50/60Hz
Consumption: 25W
Operation temperature: 0~50°C
Dimensions: 430mm(W)×400(L)mm×45mm(H)
Weight: 4Kg





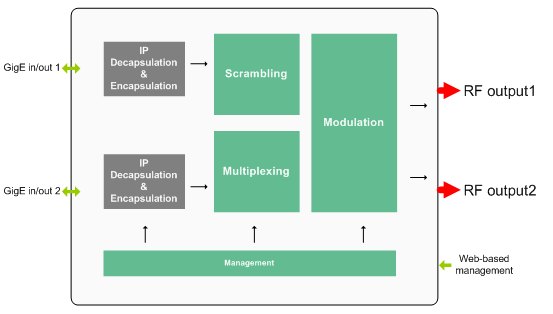

DIAGRAM
