NDI HX H.265 Live Streaming Encoder Decoder

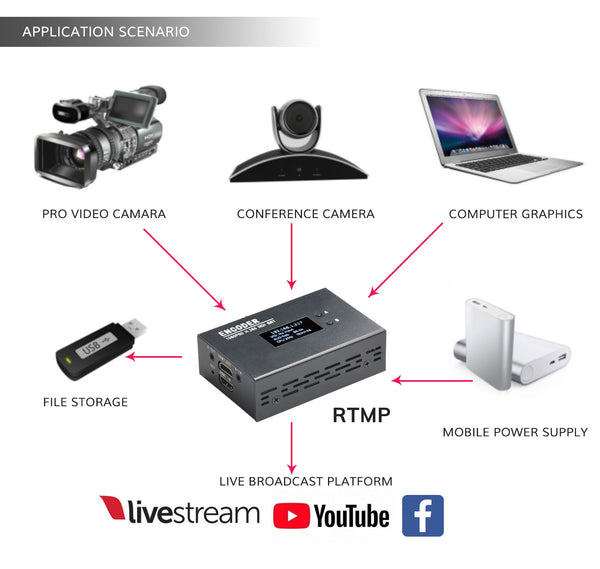

It features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265 HEVC. As encoder, it support video source through the local USB files, HDMI video or over Ethernet in normal protocol of HTTP/HLS/RTSP/RTP/UDP/RTMP/RTMPS, or in NDI|HX streams for use with other NDI|HX compatible systems, converte it to IP.
Meanwhile It support Decoding function, IP streams or NDI|HX streams input HDMI out.

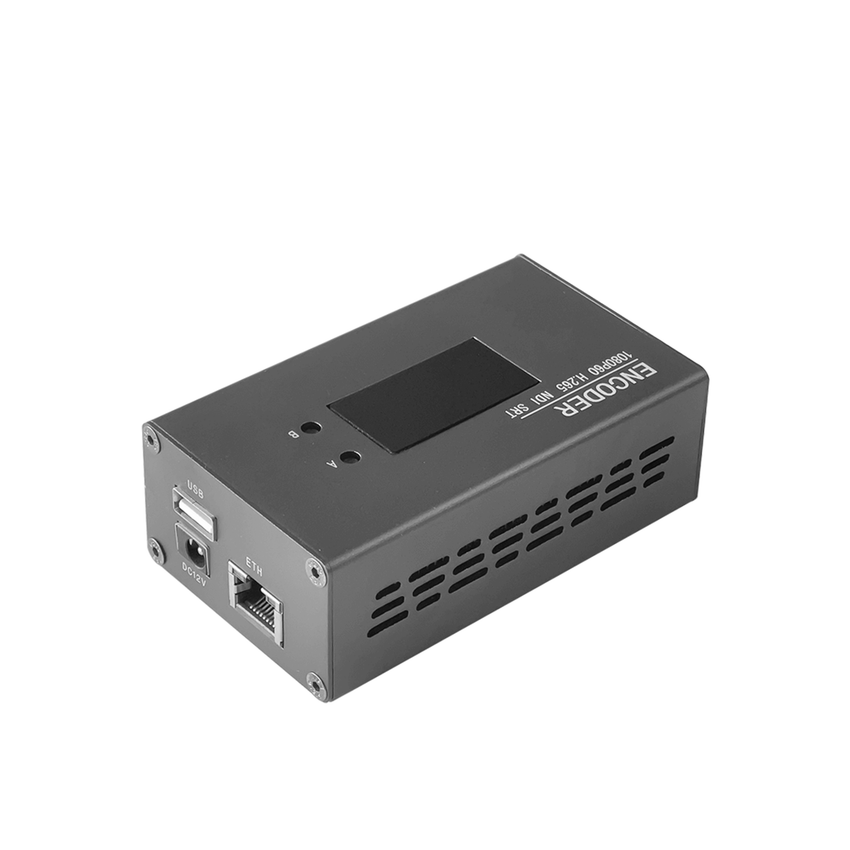

DMB-8900APRO Encoding support 1 channels of 1080P H 265 video and stereo audio simultaneously, built-in self-developed full frame rate de-interlacing technology (e.g. 1080i@60 input, after de-interlacing is 1080p@60, rather than other manufacturers of 1080P@30, which is particularly important for high quality demand live Event ).
DMB-8900APRO NDI|HX H.265 HDMI Video ENCODER Decoder be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
- Support NDI HX encoding and NDI HX decoding functions. At the request of NewTek, the copyright owner, customers who need to use the complete NDI functions need to purchase NDI Authorization separately. If no authorization, only can be use 30 minutes but no affect on other functions.
- laudio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol SRT,HTTP, HLS, RTSP, RTP,RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.
- Encoding&Transcoding*Decoding multi-function in one device
- lButton A,Button B can be custom in web management, default button A –Start the record Button B---stop the record
- LED Screenshot content can be custom in web management
- Embedded hardware encoder

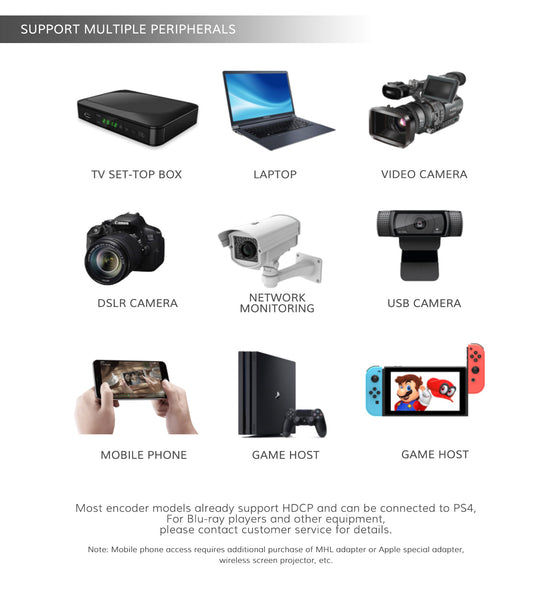

- USB Interface can be used for WIFI, Recording storage, 4G LTE module
- H 265,H 264 Main profile
- Signal source resolution 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Support High-bandwidth Digital Content Protection (HDCP)
- Audio output format AAC,MP3,PCMA,MPEG-2
- Coding Resolution: 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Support 1-channel decoder HDMI output and multiple live streams mix video output
- Support CBR,VBR,AVBR
- Highest code rate 40Mbps
- Automatic scene change detection technology, improve the coding effect
- Every channel is inserted with de-interlacing scanning algorithm
- DMB-8900APRO hevc hdmi video encoder can use space pre-treatment and block filtering technology for moving scenes
- Support a variety of common platforms such as NDI,wowza, FMS, youtube,facebook,NJ and so on
