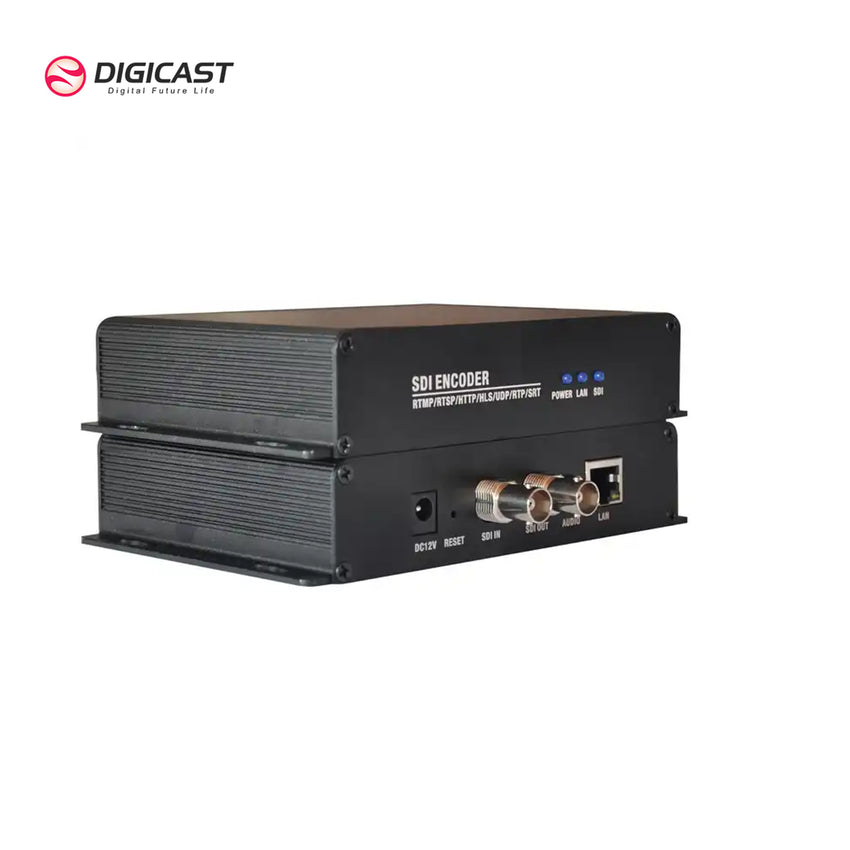

DMB 8900A-EC SDI HD Encoder H.265 H.264IPTV Encoder SDI for Youtube Wowza Platform
Product Description
OVERVIEW
In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.
DMB-8900A-EC Classic H.265/HEVC IPTV Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/HEVC, which realizes its resolution to be up to 1080P/60fps. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth. DMB-8900A-EC Classic accepts 1*HDMI input, then output 4 groups TS over IP in H.265 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs.
DMB-8900A-EC Classic provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
|
Specification
|
|||
|
Video Encoding
|
Video compression:H.265 HEVC, H.264/AVC High Profile Level 4.0
Video inputs: HDMI(HDCP supported) or SDI for option Analog video input mode: PAL, NTSC Resolution: Main stream: 1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480, 720x404,704x576,640x480,640x360,auto Sub-stream: 1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480, 640x300,352X288,320X240,320X180 auto Third-stream: 720x576,720x540,720x480,720x404,704x576,640x480, 640x300,352X288,320X240,320X180 auto Forth-stream:
720x576,720x540,720x480,720x404,704x576,640x480, 640x300,352X288,320X240,320X180 auto Bit-rate: 16kbps~12Mbps, CBR/VBR Video pre-processing: Noise reduction, Sharpen, Filtering |
||
|
Audio Encoding
|
Audio compression: AAC,AAC+,AAC++,MP3,MP2
Audio input: HDMI embedded Sampling accuracy: 24-bit Bit Rate: 48kbps~320kbps Sample-rate: 44.1KHz, 48KHz |
||
|
IP Streaming output
|
Transport protocol: TS over IP output, HLS, RTSP, HTTP, UDP and RTMP protocol
For each HDMI to IP output, supporting output 4 groups TS over IP streams (for each group the HLS, HTTP, RTSP, UDP and RTMP protocol all enabled) with 4 different resolutions (up to 1080p@60fps) and 4 different bitrates to meet different size screen and different bandwidth condition. Connector: RJ45, 1000M |
||
|
System
|
Voltage: 12V
Consumption: less than 5W Operating temperature: 0~45℃(operation), -20~65℃(storage) Dimensions: 112mm(W)*100mm(D)*28mm(H) Net Weight: 0.6 KG |
||
|
Physical And Power
|
Voltage: 12V
Consumption: less than 5W Operating temperature: 0~45℃(operation), -20~65℃(storage) Dimensions: 112mm(W)*100mm(D)*28mm(H) Net Weight: 0.6 KG |
||
Features
Video Input: one channel HDMI/SDI for option
Video compression up to Full HD 1080P@60fps
Support up to 4 groups TS over IP stream out
Support H.265/H.264 Main Profile/High Profile and MP3 & AAC audio compression
Bitrate mode: CBR/VBR 16Kbit/s~12Mbit/s
Support streaming resolution settings
GOP frame rate settings supported
Capable of image parameter settings
Insertable of logo and Scroll Caption; Adjustable of audio gain
Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
Switchable of audio output mode: Left, right and Stereo
Configurable of Multi-bitrate, Multi-resolution, Multi-protocol
Providing HLS, RTSP, HTTP, UDP and RTMP protocol
Compatible with HDCP, ONVIF Network Video Protocol
Any IOS browsers (iphone, pad, NoteBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.
Web-based management
Full-duplex mode 1000M
Application
* IPTV & OTT system
* Internet TV
* Digital Signage Project
* Remote Video Conference
* Video Monitoring
* Live Streaming
* Digital TV Broadcasting System
* Digital TV Programs Transmission
* Hotel TV System
* Head-end system of Digital TV branch network
* CATV Broadcasting system
*Edge side of Digital TV backbone network
