OVERVIEW

In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.

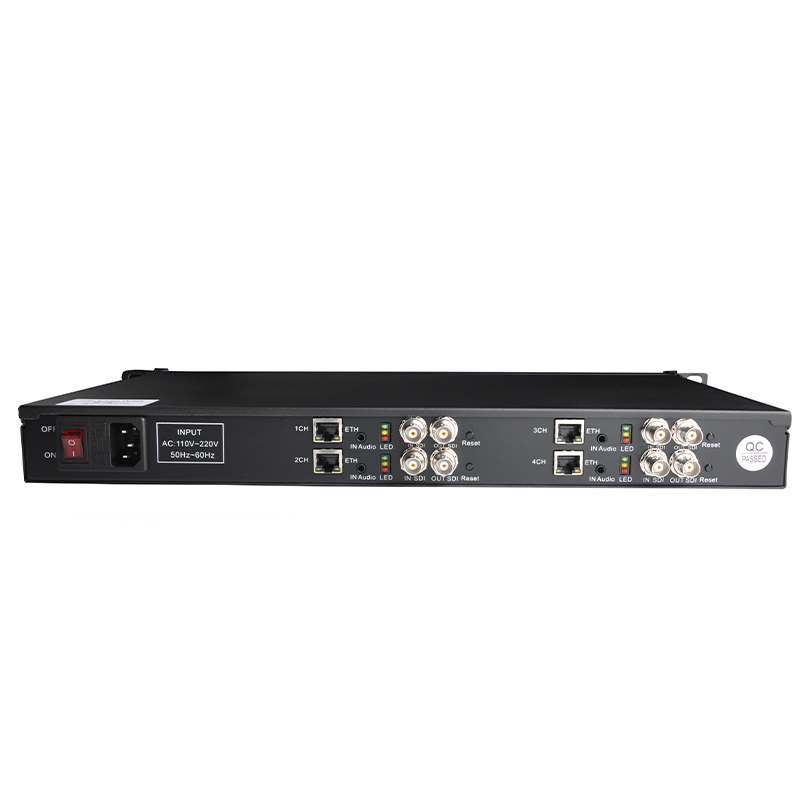

Digicast multiscreen multiprotocol series IPTV Encoder are designed to address the increasing demand for video delivery to Internet and mobile devices. DMB-8904 Classic H.265 HEVC, H.264 HD 4 Channel IPTV Encoder supports audio and video collection by 4-Ch SDI input simultaneously. For each channel input supports output 2 channels IP streams with two different resolutions (one higher resolution, the other one lower resolution), each channel of IP stream support two kinds of protocols output option.

The Encoder can deliver H.265, H.264 encoding video streams by 16 channels independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server, Wowza Media Server, Windows Media Server and some other servers based on HLS/ UDP/ RTP/ RTSP/ RTMP/ HTTP/ ONVIF protocols. Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.

DMB-8904 4 Channels Encoder is suitable for professional broadcast level IPTV&OTT system construction, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment etc.

FEATURES

• Video Input: 4-Channels SDI input/loop out +3.5mm audio work simultaneously
• Support RTMP User name and Pass word for authentication of IPTV Server
• Insertable of logo and Scroll Caption; Adjustable of audio gain;
• OSD insert LOGO: Providing overlay LOGO and Text in different location of screen
• Support up to 4 TS over IP stream out each HDMI/SDI channel
• Preview streaming for previewing and monitoring the Real-time streaming
• DMB-8804 Series Support H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression
• DMB-8904 Series support H.265 HEVC, H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression
• Bitrate mode: CBR/VBR
• Capable of image parameter settings
• Switchable of audio output mode: Left, right and Stereo
• Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
• Providing HLS,RTSP/HTTP/UDP/RTP or RTMP protocol, Multi-resolution and Multi-protocol output for destination server (wowza, ustream, Twitch, Facebook, Yutube ETC) and multi-screen for different size devices

HLS Protocol: Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

RTMP Protocol: Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).

RTP/UDP Protocol: UDP/RTP support SPTS Multicast/multicast

• Support HDCP protocol(HDMI input Version)
• Support ONVIF Network Video Protocol
• Support multiple equipmentdisplay at the same time on a computer
• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
• Web-based management.
• Full-duplex mode 1000M

APPLICATION

• Digital TV Broadcasting System
• Digital TV Programs Transmission
• Hotel TV System
• Head-end system of Digital TV branch network
• CATV Broadcasting system
• Edge side of Digital TV backbone network
