OVERVIEW

In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.

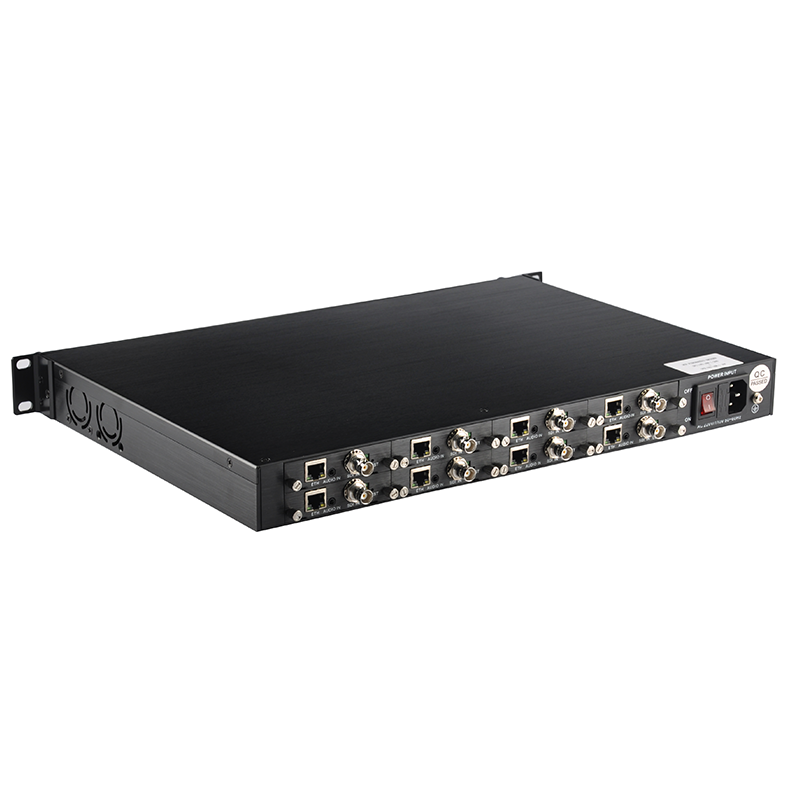

DIGICAST multiscreen multiprotocol series IPTV Encoder are designed to address the increasing demand for video delivery to Internet and mobile devices. DMB-8908 Classic H.265/H.264 HD 8 Channel IPTV Encoder supports audio and video collection by 8-Ch SDI input simultaneously for option. For SDI input, each channel of SDI input supports output 2 channels IP streams with two different resolutions (one higher resolution, the other one lower resolution), each channel of IP stream support two kinds of protocols output option. So there are total 8*4=32 channels IP streams output from 8 channels SDI input. The Encoder can deliver H.265/H.264 encoding video streams by independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server, Wowza Media Server, Windows Media Server and some other servers based on HLS/UDP/RTSP/RTMP/HTTP/ONVIF protocols. Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.

DMB-8908 Classic is suitable for professional broadcast level IPTV&OTT system construction, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment etc.

FEATURES

• Video Input: 8-Channels HD SDI +3.5mm audio work simultaneously
• Support RTMP User name and Pass word for authentication of IPTV Server
• Insertable of logo and Scroll Caption; Adjustable of audio gain;
• Support up to 4 TS over IP stream out each SDI channel
• Support H.265 HEVC, H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression
• Bitrate mode: CBR/VBR
• Capable of image parameter settings
• Switchable of audio output mode: Left, right and Stereo
• Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
• Providing HLS,RTSP/HTTP/UDP or RTMP protocol
• Any iOS browsers (iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
• Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
• Support HDCP protocol
• Support ONVIF Network Video Protocol
• Support multiple equipmentdisplay at the same time on a computer
• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
• Web-based management.
• Full-duplex mode 1000M

APPLICATION

• IPTV & OTT system
• Internet TV
• Digital Signage Project
• Remote Video Conference
• Video Monitoring
• Live Streaming
• Digital TV Broadcasting System
• Digital TV Programs Transmission
• Hotel IPTV System
